Oil Hydraulic Motor (Actuator): Installation

  1. To install, reverse the removal procedure.
CAUTION:

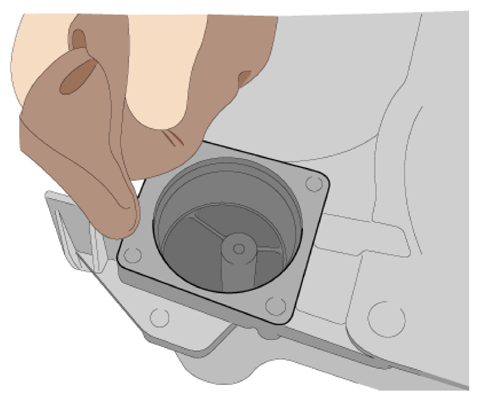

  • Before installation, wipe the surface with a clean cloth.
    G16847489Courtesy of HYUNDAI MOTOR AMERICA

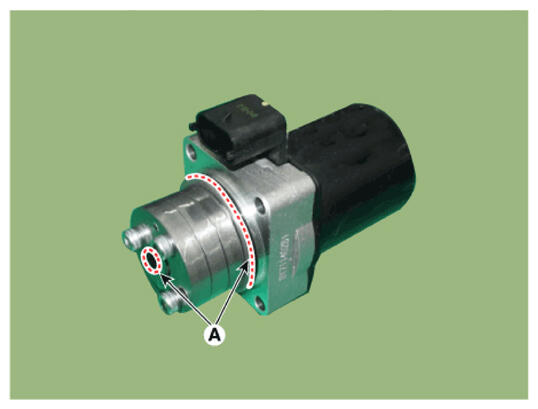

  • Check the O-rings (A) of the new hydraulic motor (actuators).
    G16847490Courtesy of HYUNDAI MOTOR AMERICA
    • Be careful not to allow the foreign matters to enter inside the hydraulic motor and housing.
