Description And Operation: Description

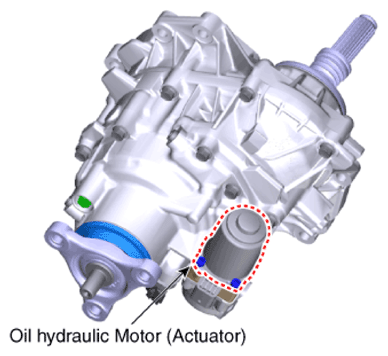

The AWD ECM controls the Oil hydraulic Motor (Actuator) to generating an oil pressure. The pressure engages a multiple disk clutch to transfer torque to the front wheels. The torque to the front wheels varies according to the pressure on the clutch.

Courtesy of HYUNDAI MOTOR AMERICA
