Description And Operation: Description

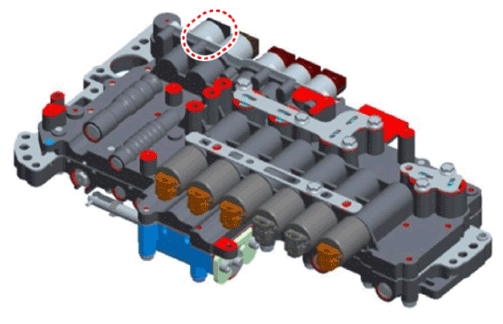

Line pressure control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the line pressure.

G16847403Courtesy of HYUNDAI MOTOR AMERICA
