Electronic Oil Pump (EOP): Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

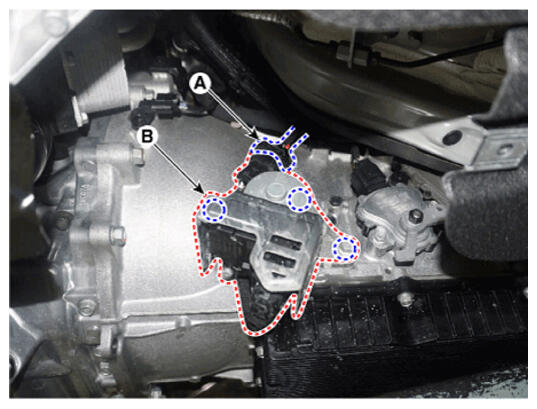

- Disconnect the EOP connector (A) and then loosening the bolts and then removing the electronic oil pump (EOP) (B).
