Electronic Oil Pump (EOP): Installation

To install, reverse the removal procedures.

NOTE:

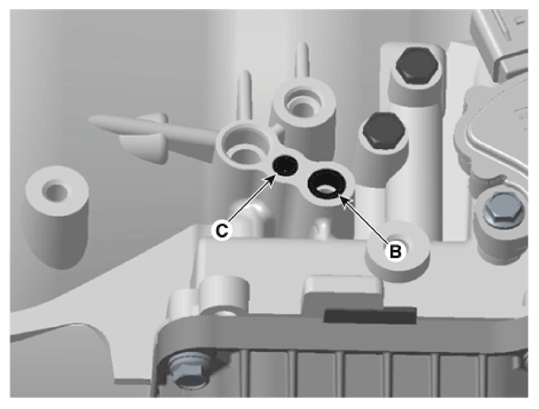

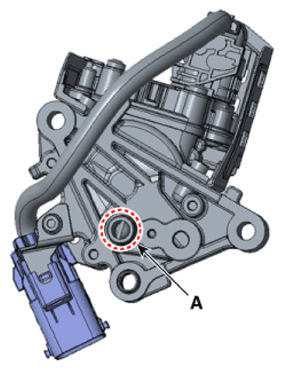

Check the assembled state of o-ring (A) and pipe seal (B),(C) before reinstalling the EOP.
When replacing the EOP, the existing pipe seal (B),(C) must be replaced with a new one.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Refill the oil and then check the oil level.
Refer to Hydraulic system - "FLUID ")
