RH Engine Mounting Bracket
- Remove the front cross member.
(Refer to Suspension System - "FRONT CROSS MEMBER ").

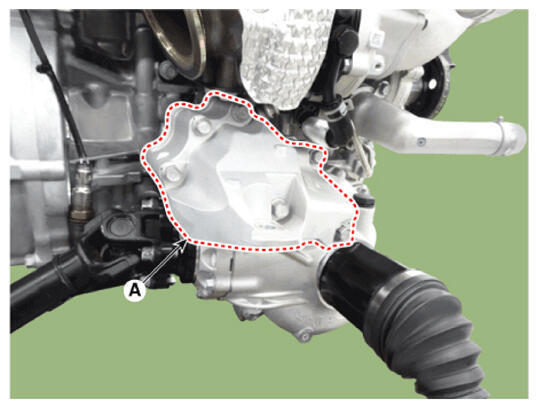

- Remove the RH engine mounting bracket (A).
Tightening torque: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

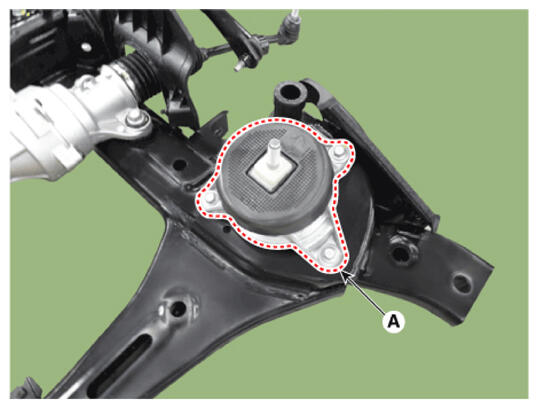

- Remove the RH engine mounting support bracket (A).
Tightening torque: 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)
- Install in the reverse order of removal.
