Special Service Tools
| Tool Name/Number | Illustration | Description |
|---|---|---|
| 09568-2J100 Ball joint puller |
Removal of the front lower arm, tie rod end | |
| 0K517-J5100 Knuckle slit expander |
Knuckle slit extension tool | |
| 09546-3X100 Shock absorber lock nut remover |
Used for remove the shock absorber lock nut | |
| 0K546-F6100 Strut nut installation/remover tool |
Used for remove and install the strut lock nut | |
| 09200-3N000 Engine support fixture (beam) |
Removal and installation of the front cross member. Used with the supporter (SST No.: 09200-L1100), adapter (SST No.: 09200-C3610), supporter (SST No.: 09200-C3620) |
|
| 09200-L1100 Engine support fixture (supporter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |
|
| 09200-C3620 Engine support fixture (adapter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |
|
| 09200-C3610 Engine support fixture (supporter) |
Removal and installation of the front cross member. Used with the beam (09200-3N000) |

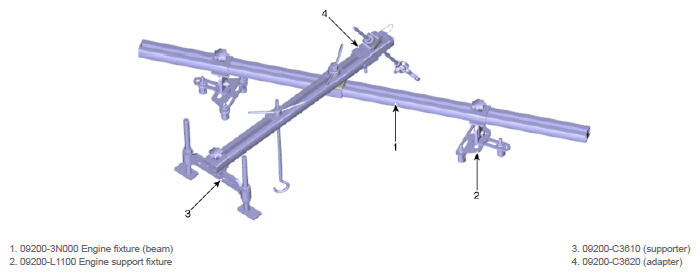

* Engine support fixture assembly drawing
Information
- When using the adapter (09200-C3620), check the specified angle for each engine type.
| 2.5 T-GDI (B: 40°) | G 3.5 T-GDI (B: 40°) | D 2.2 TCI (B: 40°) |
|---|---|---|
