Removal And Installation

Turn ignition switch OFF and disconnect the negative (-) battery cable.
CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ")
Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
Remove the front brake caliper.
(Refer to Brake System - "FRONT BRAKE CALIPER ")

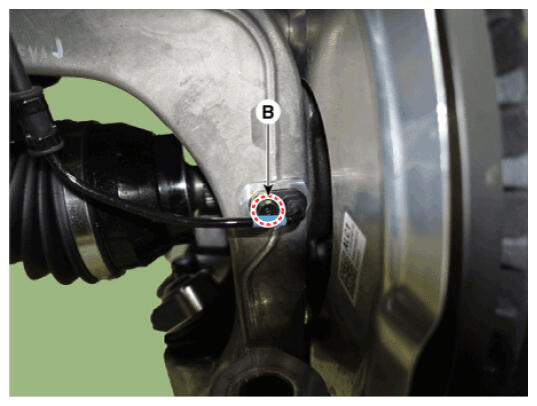

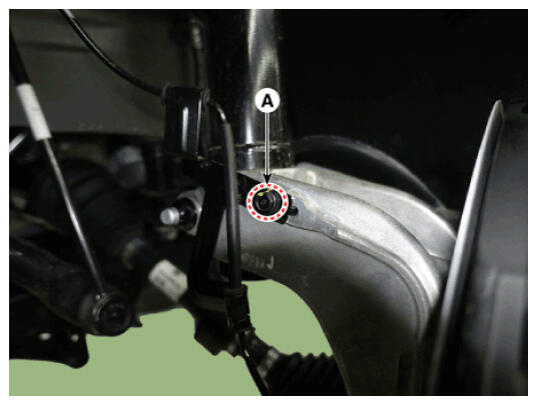

Disconnect the front wheel speed sensor after loosening the mounting bolts (A, B).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

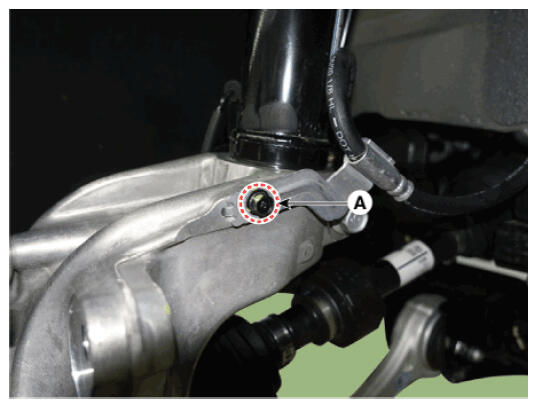

Loosen the brake hose bracket mounting bolt (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

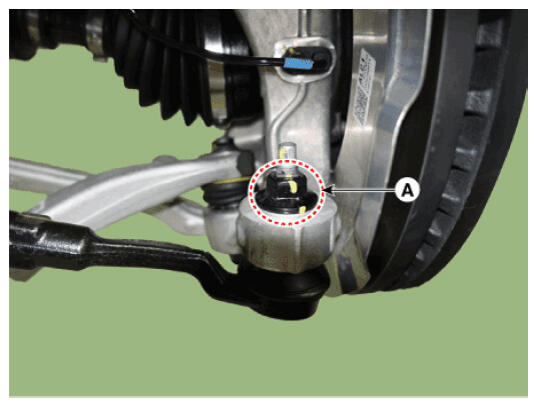

Remove the split pin and then loosen the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

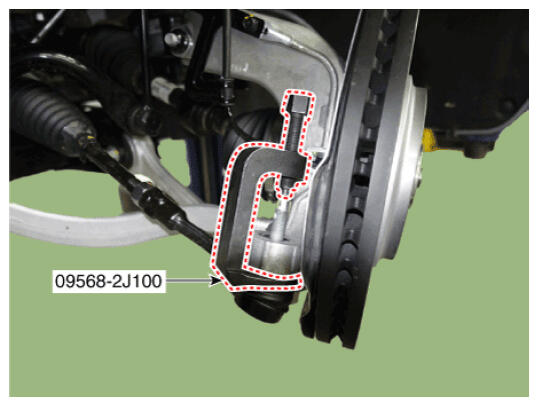

Remove the tie rod end ball joint by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

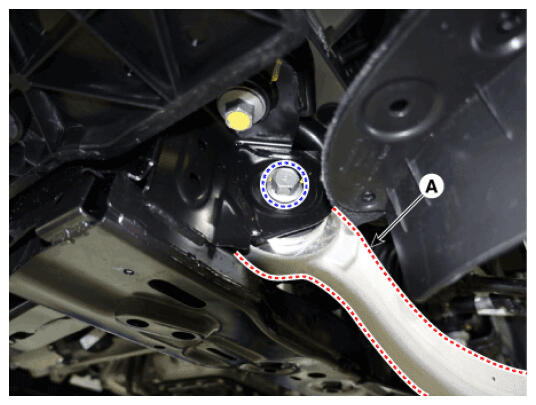

Separate the lateral arm (A) from the sub frame after loosening the mounting bolt and nut.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

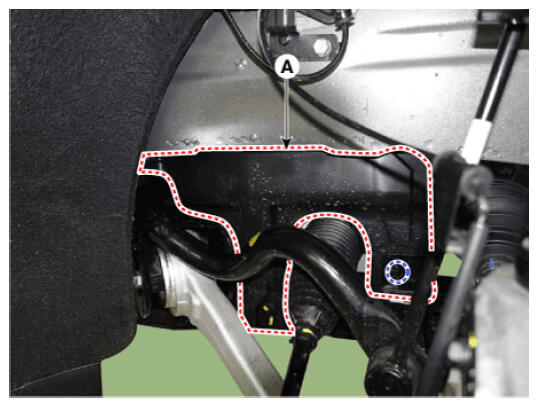

Remove the side cover (A) after loosening the mounting bolts.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

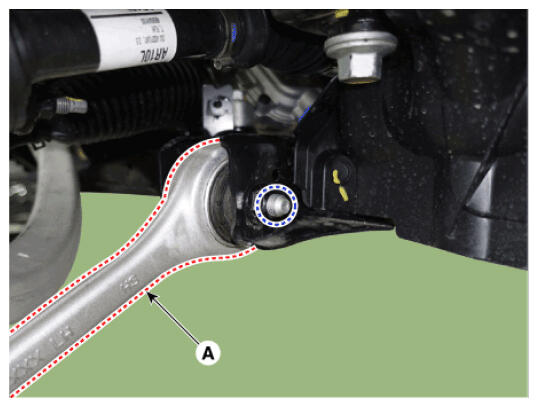

Separate the tension arm (A) from the sub frame after loosening the mounting bolt and nut.
Tightening torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

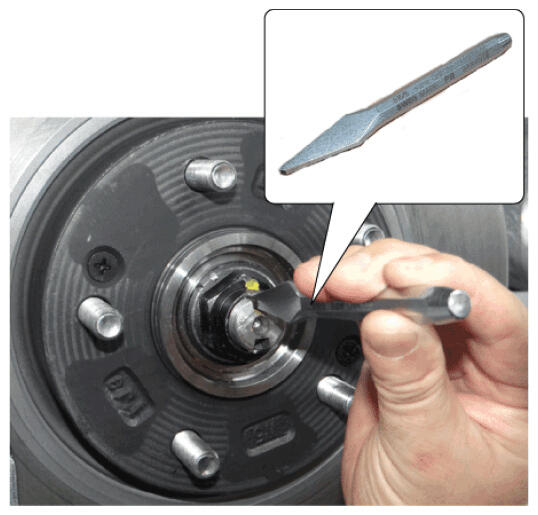

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

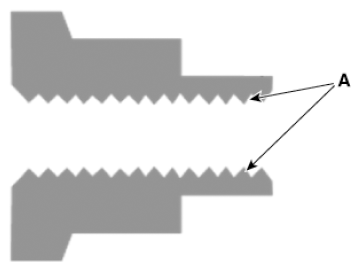

- If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.
Courtesy of HYUNDAI MOTOR AMERICA

Loosen the caulking nut (A) from the driveshaft and then seperate the driveshaft from the hub assembly by using the plastic hammer.

Tightening torque:

294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

NOTE:

The driveshaft lock nut must be replaced with new one.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

The driveshaft lock nut must be replaced with new one.

Courtesy of HYUNDAI MOTOR AMERICA

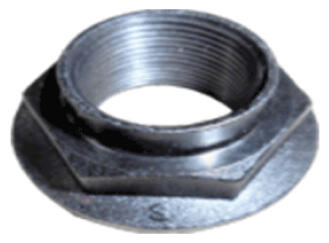

When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

Courtesy of HYUNDAI MOTOR AMERICA

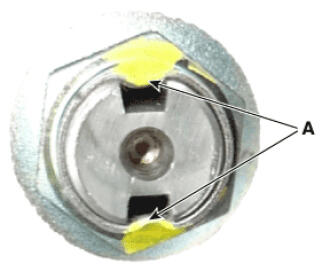

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.

If there are two key seats, perform on all two seats.

Caulking depth (A): 1.5 mm (0.0591 in)

Courtesy of HYUNDAI MOTOR AMERICA

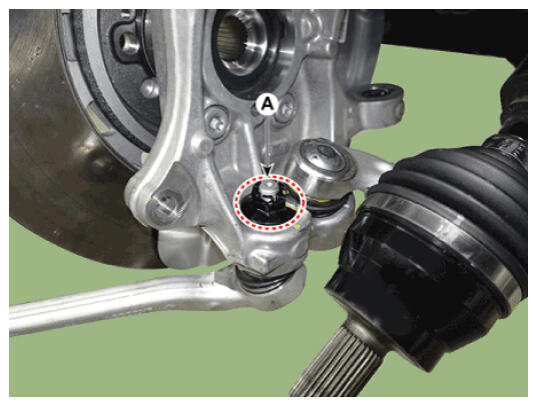

Remove the split pin and then loosen the nut (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

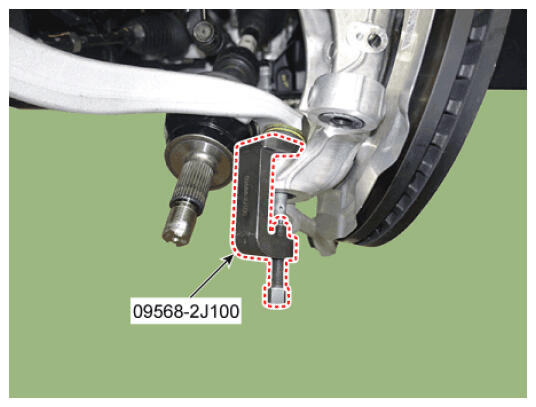

Remove the lateral arm ball joint by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

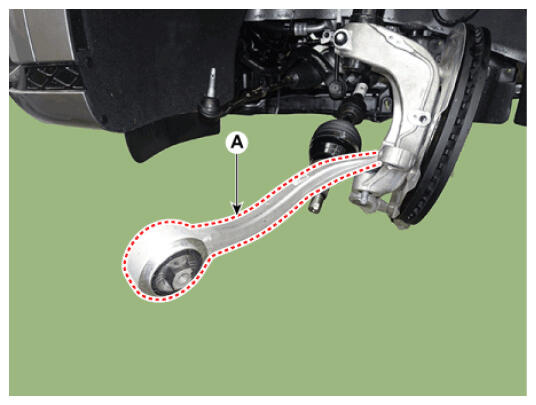

Remove the lateral arm (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
