Genesis
>>
2024
>>
GV70 2.5T
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
Front Suspension System
>>
Front Strut Assembly
>>
Components And Components Location
>>
Components
Components And Components Location: Components

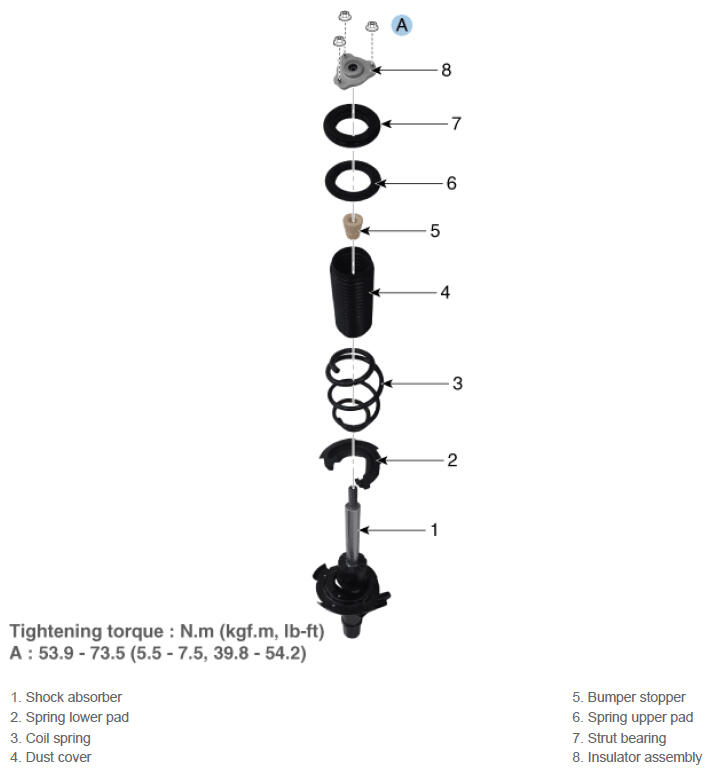

Fig 1: Front Strut Assembly Components Location With Torque Specifications
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
