Removal And Installation
- Turn ignition switch OFF and disconnect the negative (-) battery cable.CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).
(Refer to General Information - "LIFT AND SUPPORT POINTS ") - Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the steering gear box.
(Refer to Steering System - "STEERING GEAR BOX ")

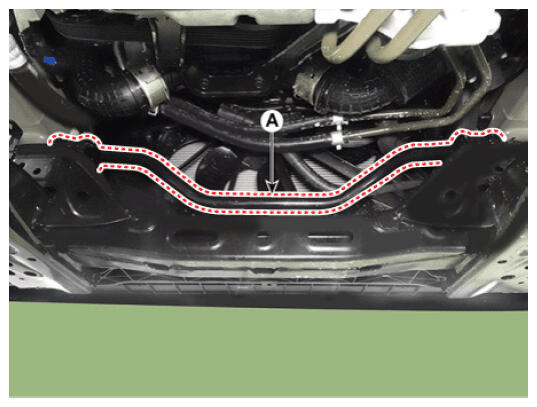

- Remove the front stabilizer bar (A).
- To install, reverse the removal procedures.
- Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
