Removal And Installation

Turn the steering wheel so that the front wheels are placed in the straight ahead position.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Remove the driver airbag module (DAB).
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering column shroud panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) ")

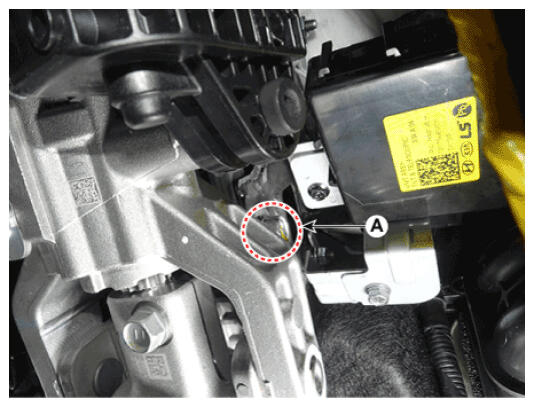

Disconnect the electric steering column lock switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

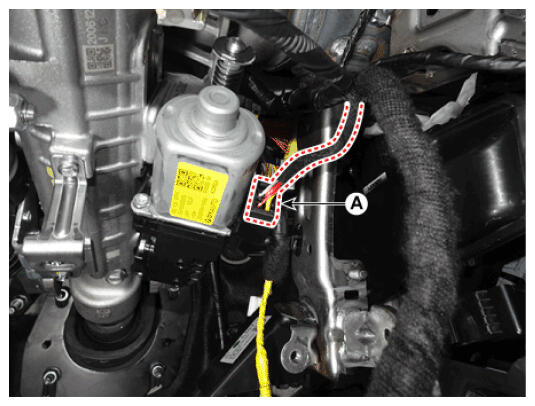

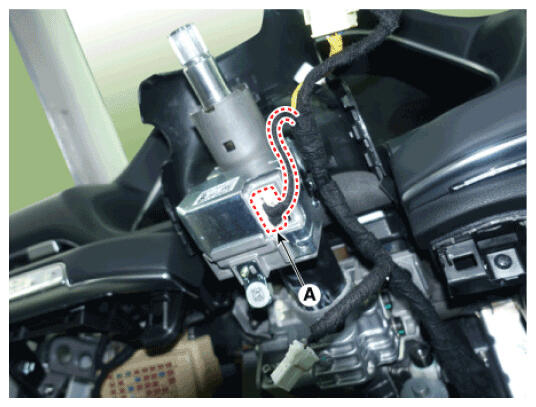

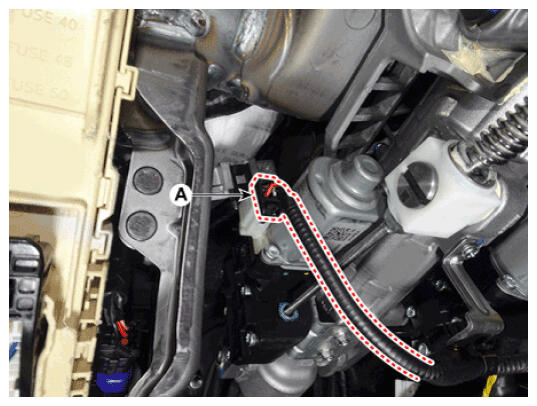

Disconnect the tilt & telescopic connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

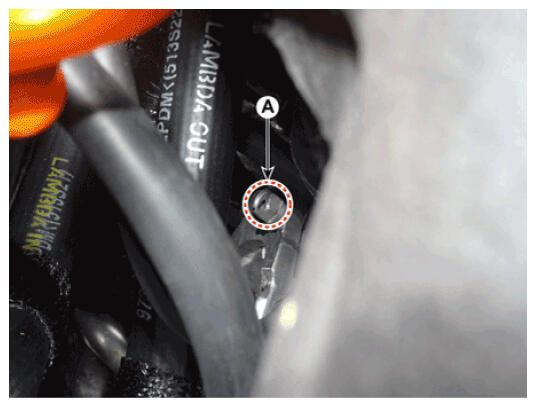

Loosen the bolt (A) and then separate the universal joint from the steering column and shaft.
Tightening torque:

32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Keep the steering wheel in a neutral position. Moving the steering wheel may damage the cable inside the clock spring.
- Tighten the steering column bolts in the same direction as they were removed.
- Do not reuse the universal joint bolt when installing.

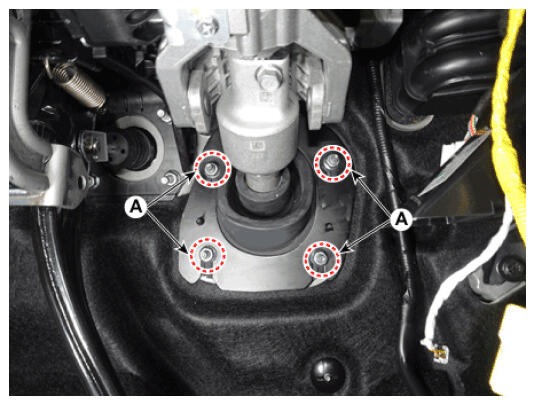

Loosen the steering column dust cover nuts (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

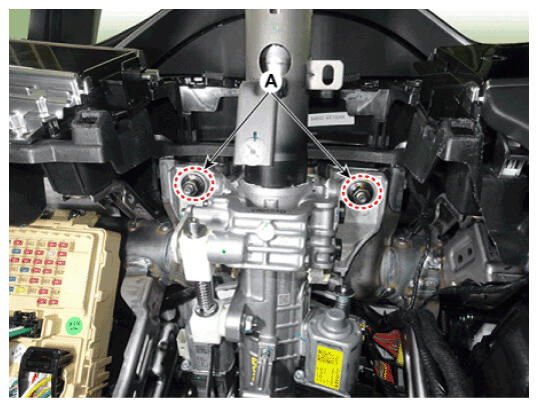

Remove the steering column and shaft after loosening the mounting nuts (A) and bolt (B).
Tightening torque
1. 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
2. 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedures.
Check the alignment.
(Refer to Suspension System - "ALIGNMENT ")
