GV70 2.5T
>>
Repair and Diagnosis
>>
Steering
>>
Electronic Steering
>>
Motor Driven Power Steering System
>>

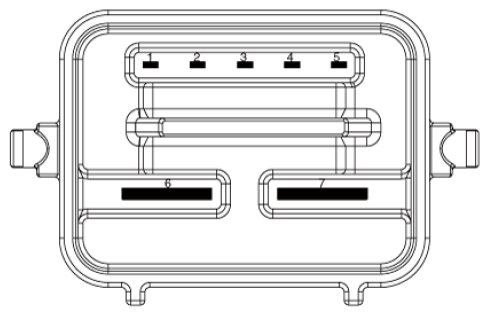

Connector And Terminal Information
Connector And Terminal Information
Courtesy of HYUNDAI MOTOR AMERICA
Item
Pin
Pin name
MDPS Unit
1
Ignition
2
C-CAN (High)
3
C-CAN (Low)
4
-
5
-
6
Battery -
7
Battery +
Courtesy of HYUNDAI MOTOR AMERICA
