Passenger Airbag (PAB) Module: Removal
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

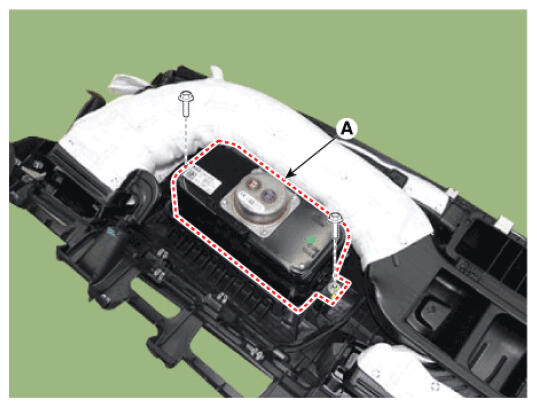

- Remove the passenger airbag module (A) after removing the bolts.
Tightening torque:
3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb-ft)
