[Drive Airbag (DAB)]

  1. Set the front tires straight-ahead.
  2. Disconnect the battery negative terminal.
    CAUTION:
    • After disconnecting the cables, wait at least 3 minutes.

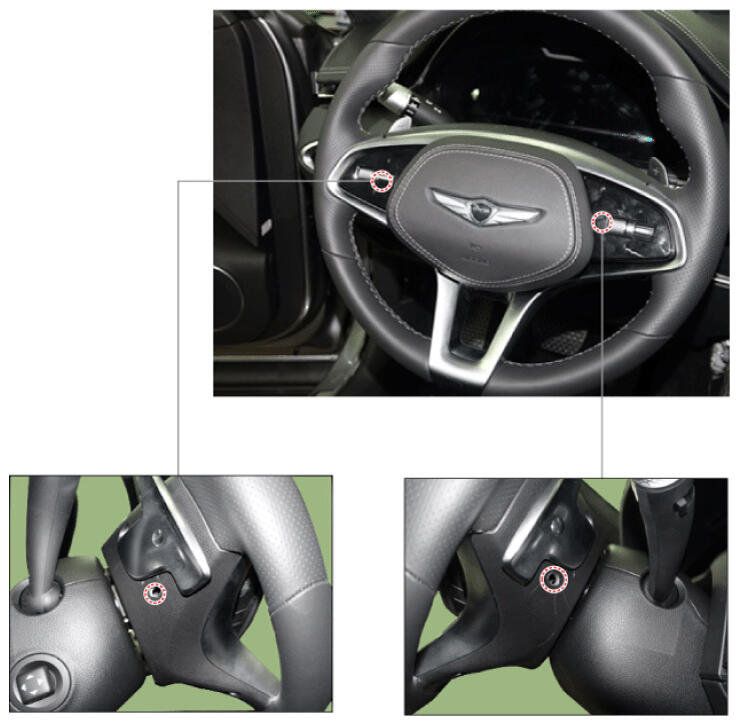

  3. Put a flat tool (Ø 5 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.
    G16854848Courtesy of HYUNDAI MOTOR AMERICA

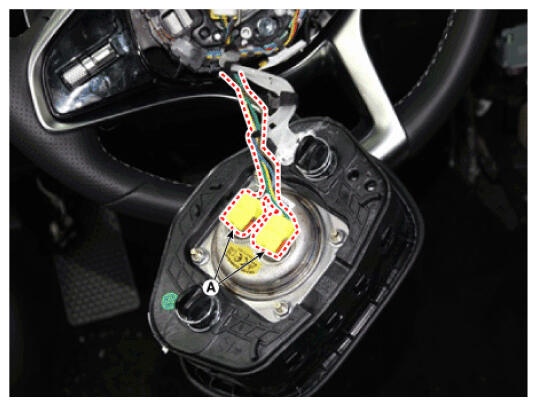

  4. Remove the airbag module from the steering wheel by disconnecting the airbag module connectors (A).
    G16854849Courtesy of HYUNDAI MOTOR AMERICA
