Center Side Air Bag Module (CSAB): Removal
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.

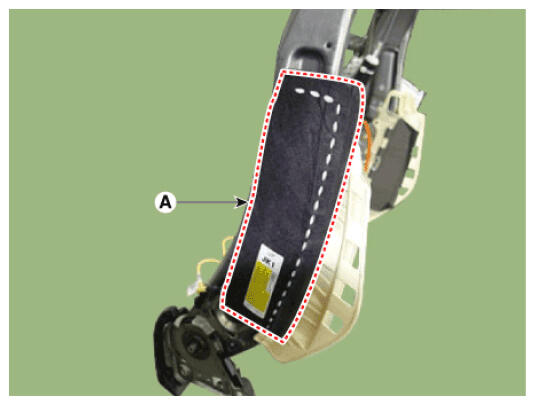

- Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

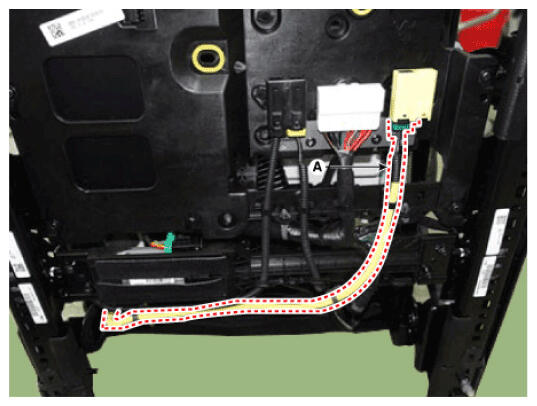

- Remove the center airbag wiring (A) after removing the side airbag wiring clips.

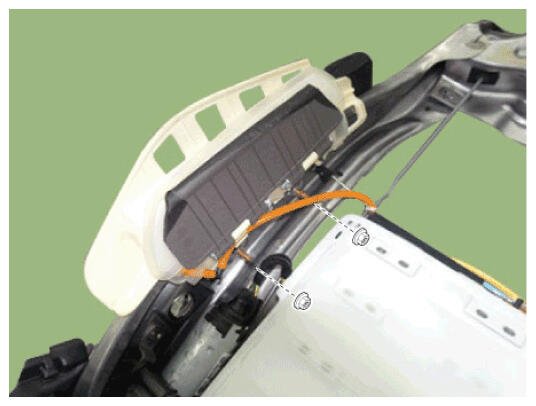

- Loosen the mounting nuts and remove the center side air bag module (A).
Tightening torque:
5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb-ft)
