Temperature Control Actuator: Replacement: [Passenger]
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel [RH].
(Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

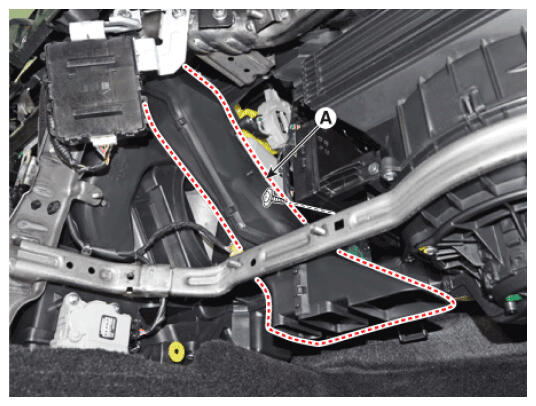

- Loosen the mounting screw, remove the shower duct [RH] (A).

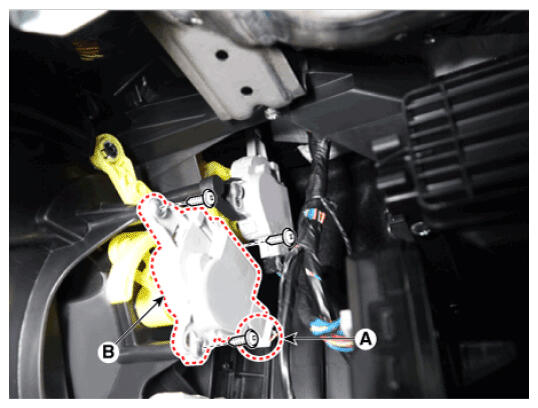

- Disconnect the connector (A), loosen the mounting screws and remove the temperature control actuator (B).
- Install in the reverse order of removal.
