Temperature Control Actuator: Inspection
- Turn the ignition switch OFF.
- Disconnect the temperature control actuator connector.
- Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
Verify that the mode control actuator operates to the vent mode when connected in reverse.

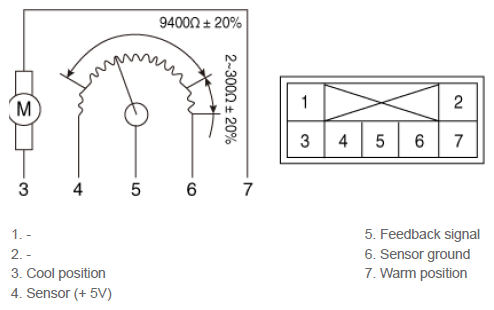

[Driver]

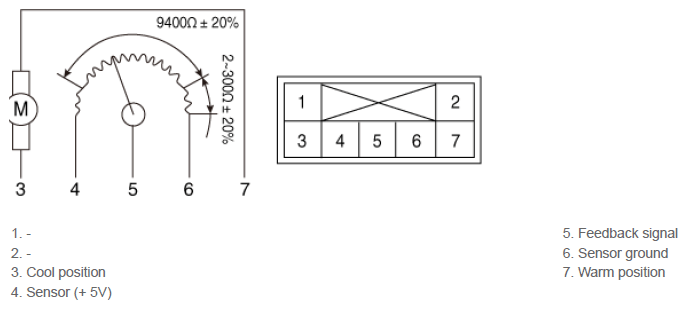

[Passenger]
- Connect the temperature control actuator connector.
- Turn the ignition switch ON.
- Check the voltage between terminal 5 and 6.
Door Position Voltage (V) Error Detecting Max. Cooling 0.3 ± 0.15V Low voltage: 0.1V or less High voltage: 4.9V or more Max. Heating 4.7 ± 0.15V * It will feedback the current position of the actuator to controls. - If the measured voltage is not within specification, substitute with a known-good temperature control actuator and check for proper operation.
- Replace the temperature control actuator if it is proved that there is a problem with it.
