Mode Control Actuator: Replacement: [Passenger]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

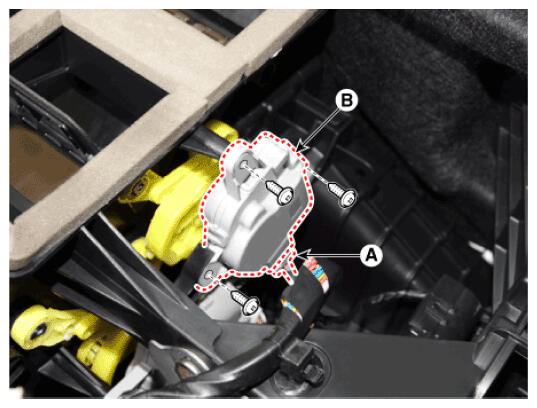

  3. Disconnect the mode control actuator connector (A) and loosen the mounting screw and remove the mode control actuator (B).
    G16856533Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
