Mode Control Actuator: Replacement: [Driver]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the DC DC converter.

    (Refer to Engine Electrical System - "DC DC CONVERTER ")

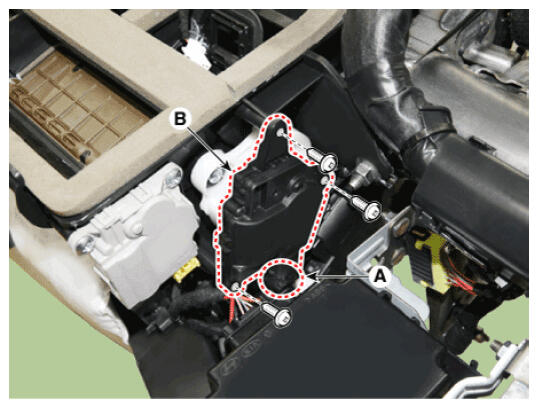

  3. Disconnect the mode control actuator connector (A) and loosen the mounting screw and remove the mode control actuator (B).
    G16856532Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
