[Console temperature actuator]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

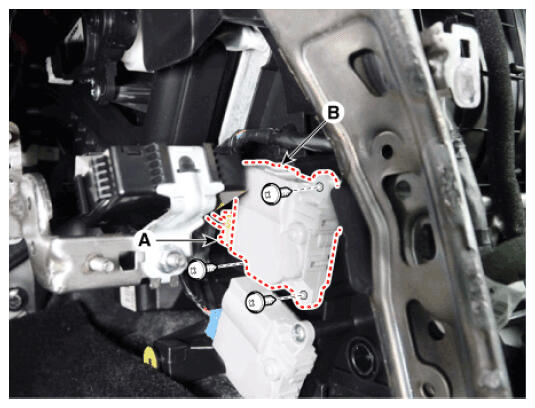

  4. Disconnect the console temperature actuator connector (A) and loosen the mounting screw and then remove the console temperature actuator (B).
    G16856537Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
