[Console temperature actuator A]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel [RH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

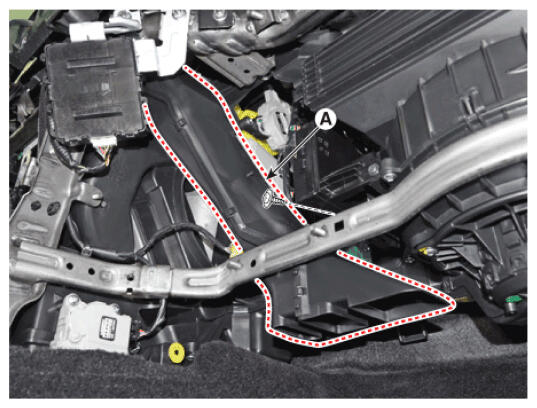

  3. Loosen the mounting screw, remove the shower duct (A).
    G16856538Courtesy of HYUNDAI MOTOR AMERICA

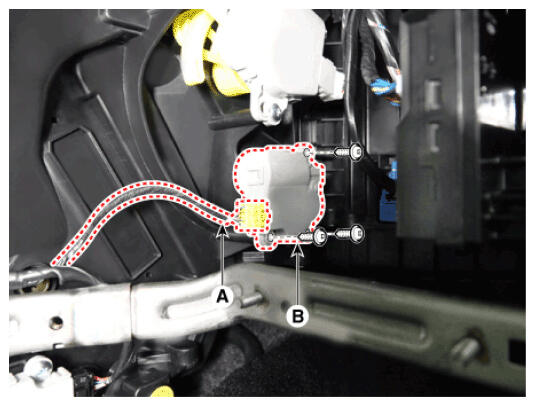

  4. Disconnect the console temperature actuator connector A (A) and loosen the mounting screw and then remove the console temperature actuator A (B).
    G16856539Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
