[Console ON/OFF actuator]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

  4. Disconnect the console ON/OFF actuator connector (A) and loosen the mounting screw and then remove the console ON/OFF actuator (B).

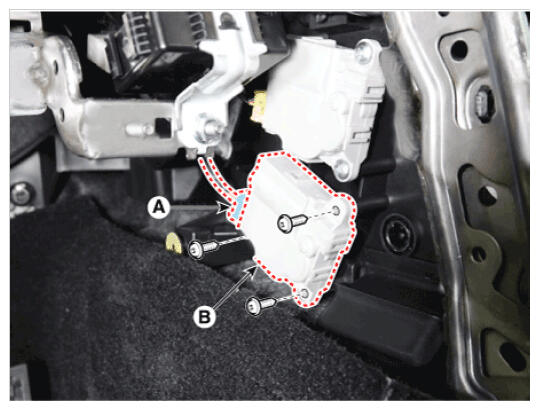

    G16856536Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
