Console Mode Control Actuator: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body (Interior and Exterior) - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the crash pad garnish [RH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD GARNISH ")

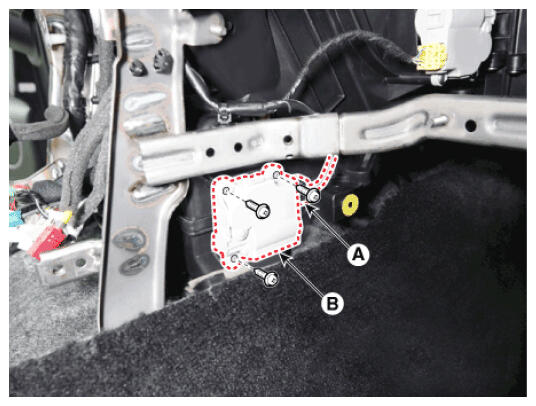

  4. Disconnect the console mode control actuator connector (A) and loosen the mounting screw and then remove the console mode control actuator (B).
    G16856541Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
