Auto Defogging Actuator: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

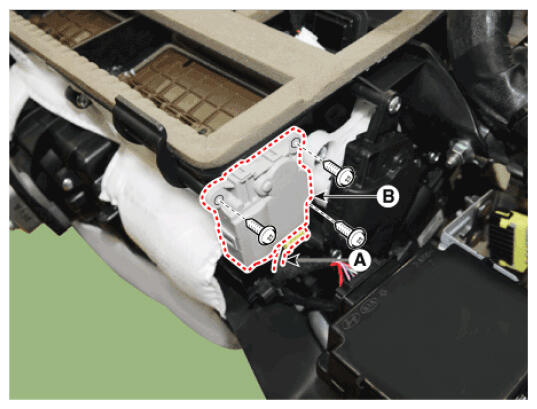

  3. Disconnect the connector (A) and loosen the mounting screws and remove the auto defogging actuator (B).
    G16856544Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
