Heater Control Unit: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center panel [RH].
(Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

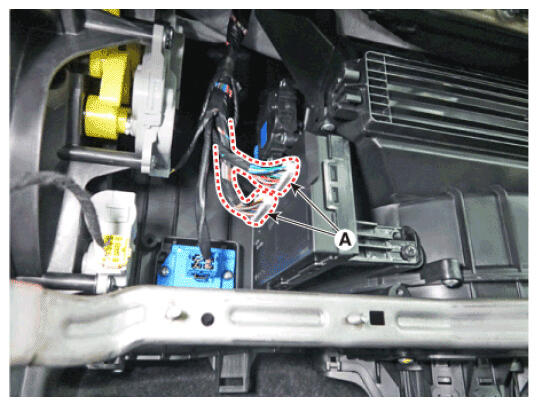

- Disconnect the heater control unit connector (A).

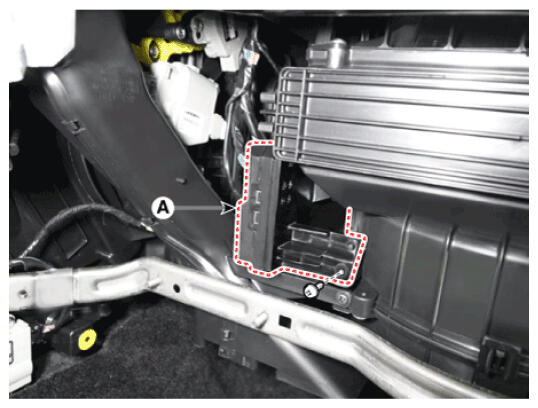

- Loosen the mounting screw and then remove the heater control unit (A).
- Install in the reverse order of removal.
Information
- Be careful that the coolant may flow when removing the heater core.
