Heater And A/C Control Unit (Rear): Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Disconnect the negative (-) battery terminal.
- Remove the rear console cover.
(Refer to Body (Interior and Exterior) - "REAR CONSOLE COVER ")

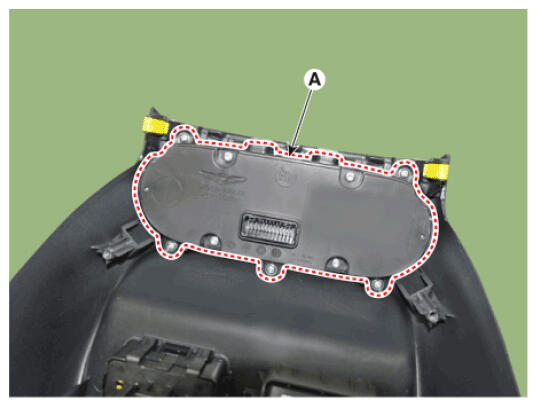

- Loosen the mounting screws, remove the heater & A/C control unit (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
