PM Sensor: Replacement
- Disconnect the negative (-) battery terminal.
- Remove the crash pad air vent [RH].
(Refer to Body (Interior and Exterior) - "CRASH PAD AIR VENT ")

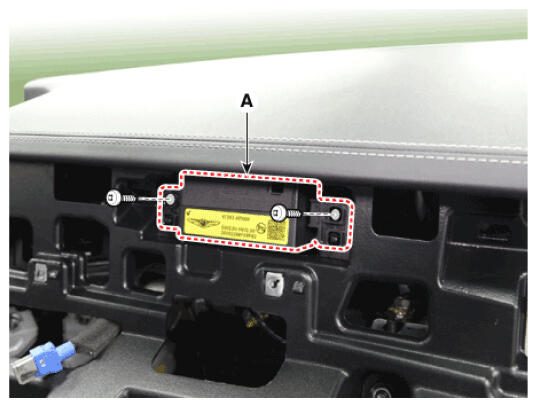

- Loosen the mounting screws, remove the PM sensor (A).

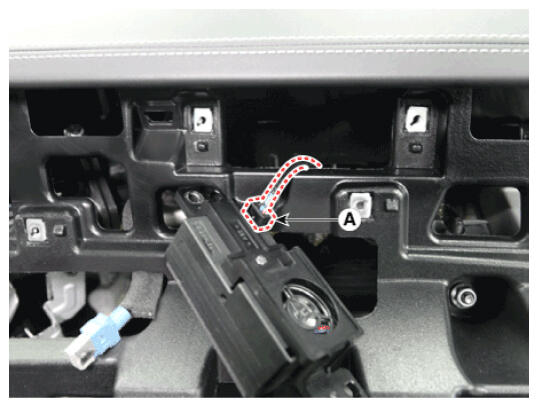

- Disconnect the PM sensor connector (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips (or retainers or fasteners).
