In-car Sensor: Replacement

  1. Remove the crash pad garnish [RH].

    (Refer to Body (Interior and Exterior) - "CRASH PAD GARNISH ")

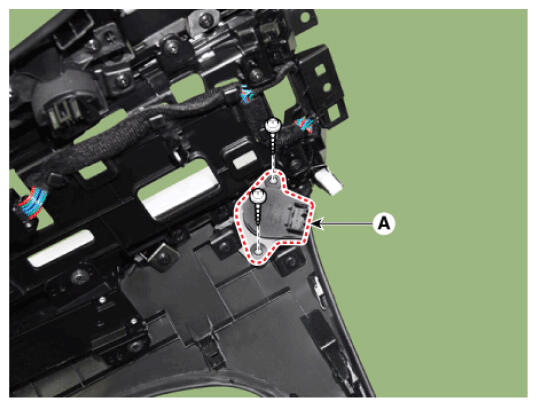

  2. Loosen the mounting screw and then remove the in-car sensor (A).
    G16856470Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
