Flange With Guide Pin

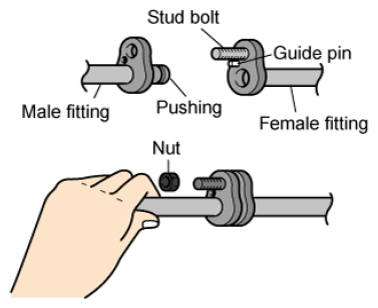

Check the new O-ring for damage (use only the specified) and lubricate it by using compressor oil. Tighten the nut to the specified torque.

G16856414Courtesy of HYUNDAI MOTOR AMERICA
