Evaporator Temperature Sensor: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the heater unit.

    (Refer to Heater - "HEATER UNIT ")

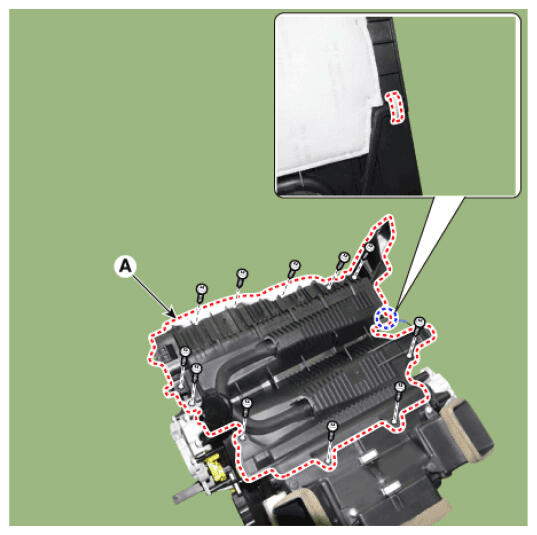

  3. Loosen the mounting screws and remove the evaporator core cover (A).
    G16856466Courtesy of HYUNDAI MOTOR AMERICA

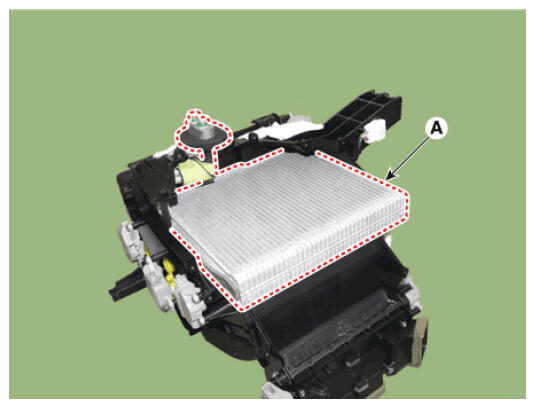

  4. Remove the evaporator core (A) from the heater unit.
    G16856467Courtesy of HYUNDAI MOTOR AMERICA

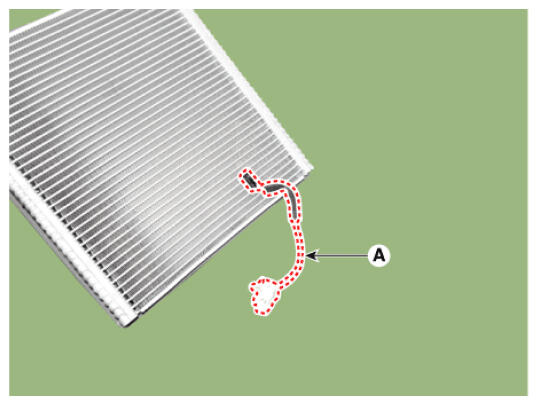

  5. Separate the evaporator temperature sensor (A) from the evaporator core.
    G16856468Courtesy of HYUNDAI MOTOR AMERICA
  6. Install in the reverse order of removal.
