Auto Defogging Sensor: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Disconnect the negative (-) battery terminal.

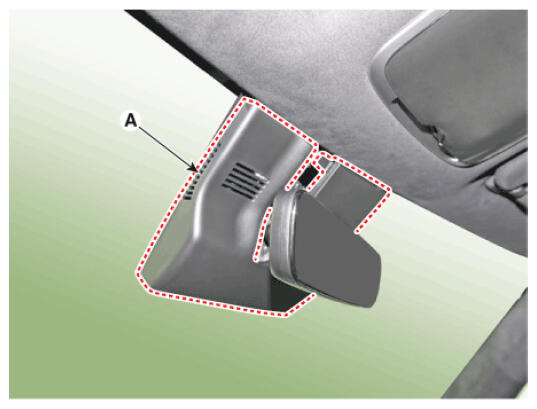

Remove the inside rear view mirror cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

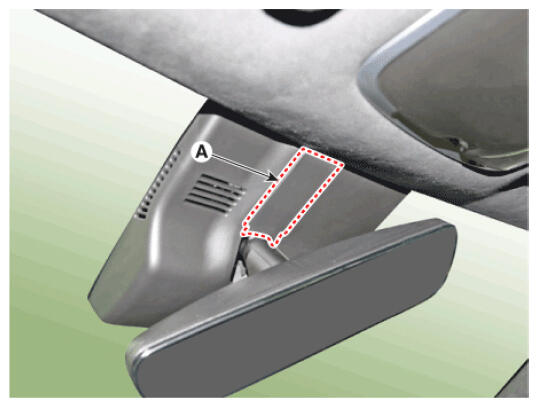

Remove the rain sensor cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

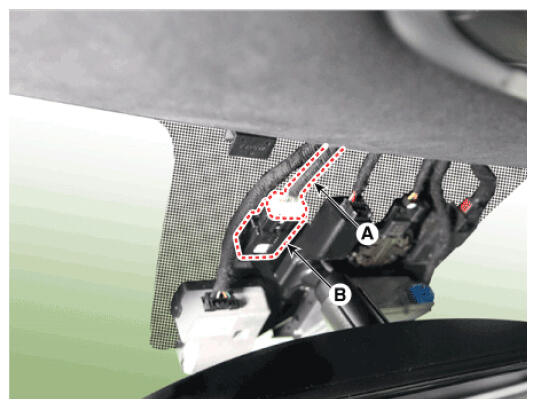

Disconnect the auto defogging sensor connector (A) and remove the auto defogging sensor (B).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
CAUTION:
- Remove and install, paying attention to damage to the windshield glass.
