Ambient Sensor: Inspection: Notes

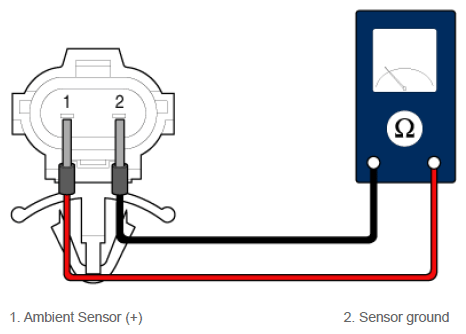

  1. Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.
G16856475Courtesy of HYUNDAI MOTOR AMERICA

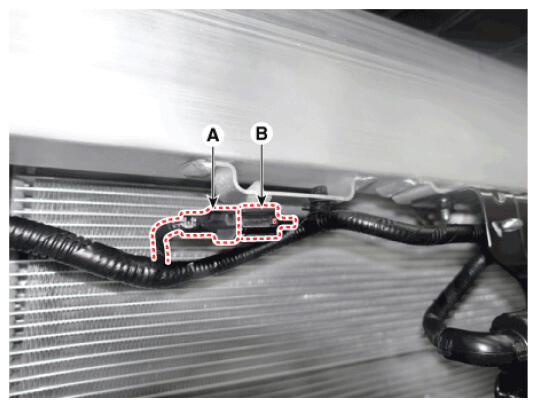

Harness connector (A) and ambient temperature sensor (B).

G16856474Courtesy of HYUNDAI MOTOR AMERICA
