A/C Pressure Transducer: Replacement

Recover the refrigerant with a recovery/charging station.
(Refer to Air Conditioning System - "REFRIGERANT RECOVERY/RECYCLING/CHARGING/VACUUM ")
Disconnect the negative (-) battery terminal.

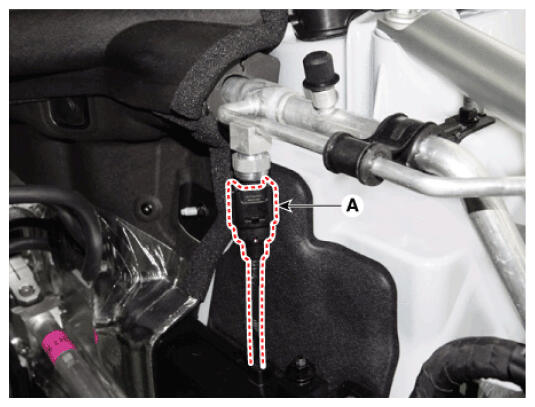

Disconnect the A/C pressure transducer connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

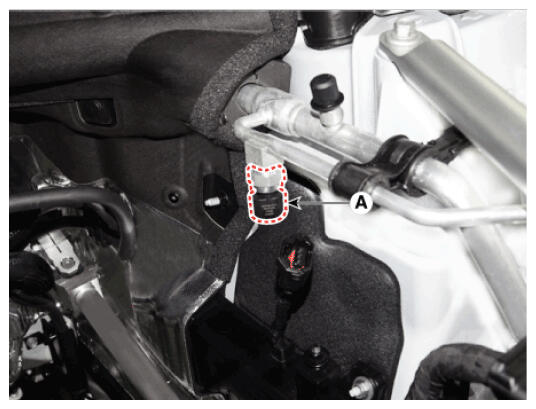

Disconnect the A/C pressure transducer connector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- When installing, replace it with a new O-ring.
