Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Identify, valves and valve springs as they are removed so that each item can be reinstalled in its original position.
  1. Remove the valves.

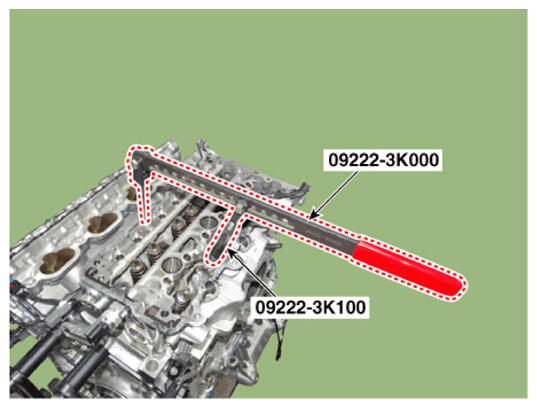

    1. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and remove the valve spring retainer locks.
      G16847855Courtesy of HYUNDAI MOTOR AMERICA

      Information

      • When installing the SST, insert the front support directly into the bolt hole on the cylinder head.
      NOTE:
      • Do not press valve retainer more than 8 mm (0.31 in.)

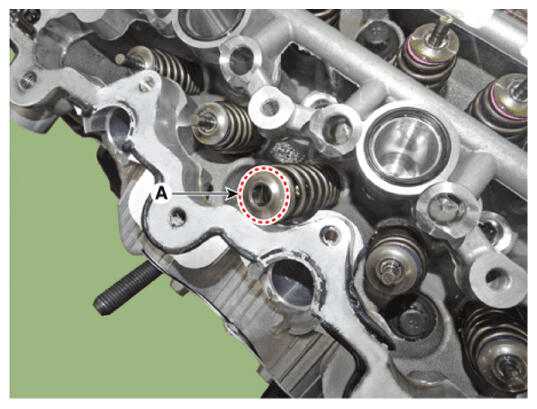

    2. Remove the spring retainer (A).
      G16847856Courtesy of HYUNDAI MOTOR AMERICA

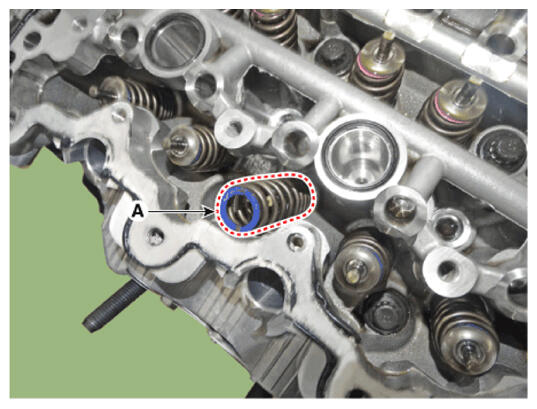

    3. Remove the valve spring (A).
      G16847857Courtesy of HYUNDAI MOTOR AMERICA

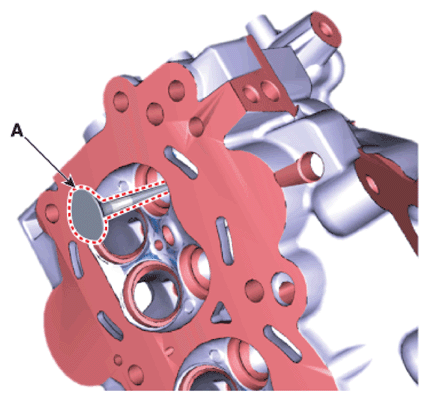

    4. Remove the valve (A).
      G16847858Courtesy of HYUNDAI MOTOR AMERICA

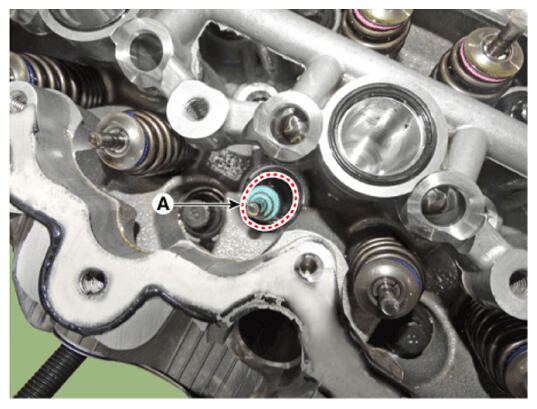

    5. Using long-nose pliers, remove the valve stem seal (A).
      G16847859Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Always use new valve stem seals.
