LH Cylinder Head Cover
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative terminal from the trunk room.
- Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
- Remove the LH air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

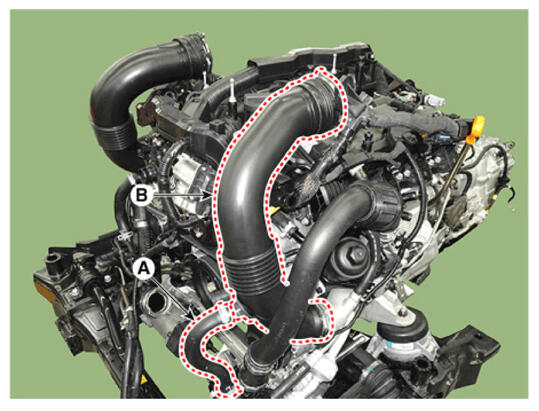

- Disconnect the RCV hose (A), and then remove the air intake hose (B).

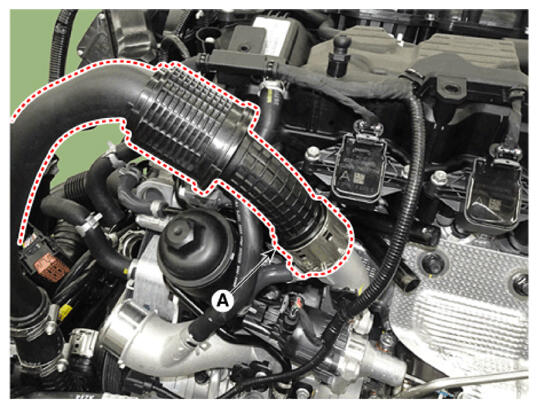

- Remove the intercooler inlet pipe (A).

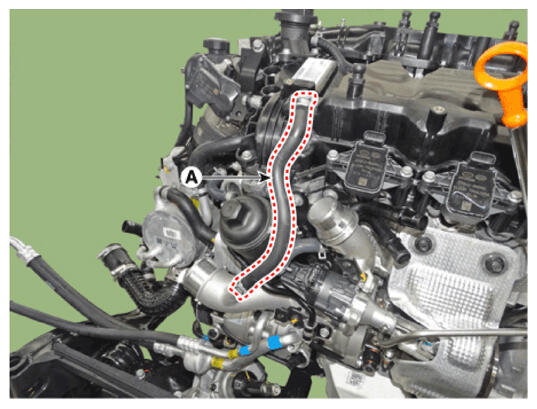

- Disconnect the fuel hose (A) and purge control solenoid valve (PCSV) hose (B).

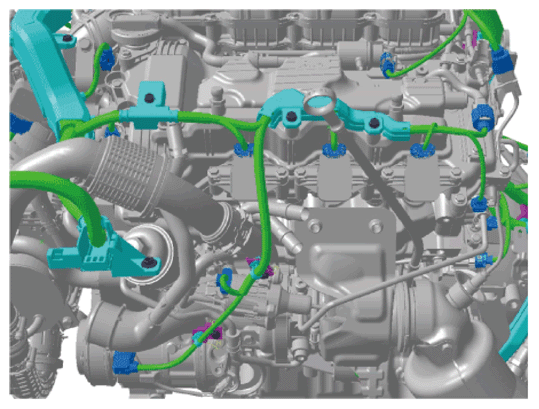

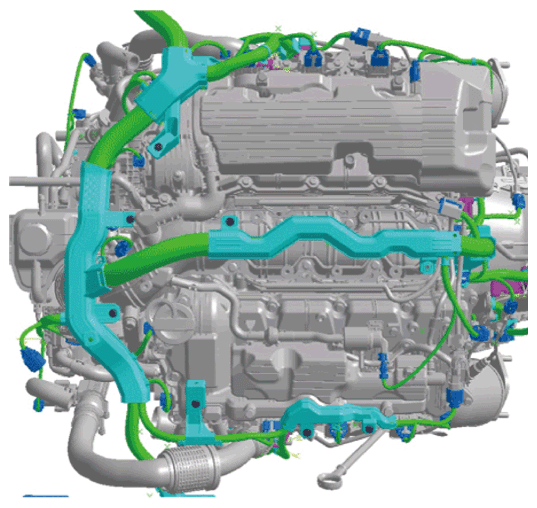

- Disconnect the engine wiring connectors and harness clamps around the LH cylinder head cover. Then, remove the connector brackets and wiring protector.
Tightening torque:
6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb-ft)
- Disconnect the breather hose (A).

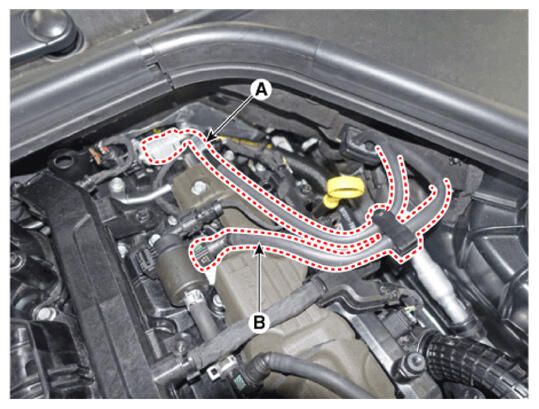

- Disconnect the hose (A), and then remove the purge control solenoid valve (PCSV) (B).
Tightening torque:
7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)
- Remove the LH ignition coils.
(Refer to Engine Electrical System - "IGNITION COIL ")
- Remove the LH GDI injector.
(Refer to Engine Control/Fuel System - "INJECTOR ")

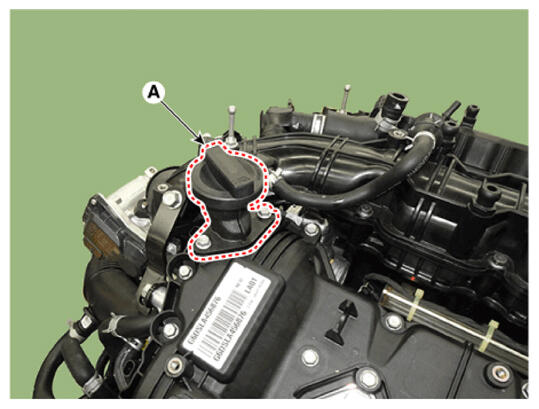

- Remove the engine oil filler cap body (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Remove the LH cylinder head cover (A).NOTE:
- After removing the LH cylinder head cover, be sure to cover the top side of the cylinder head with a clean towel or vinyl cover to prevent foreign matters from entering.

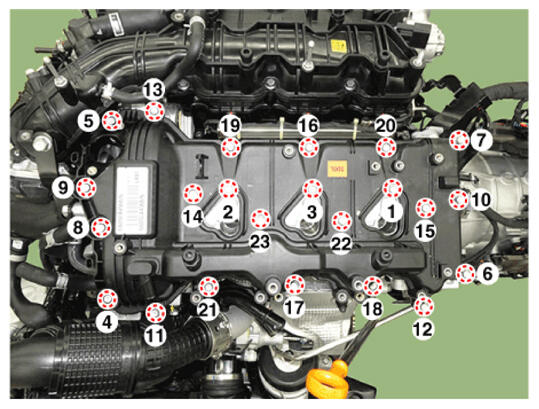

- Unfasten the cylinder head cover bolts in the sequence shown.
