Components And Components Location: Components: [RH]

WARNING: This page is about a different variant/trim than selected.

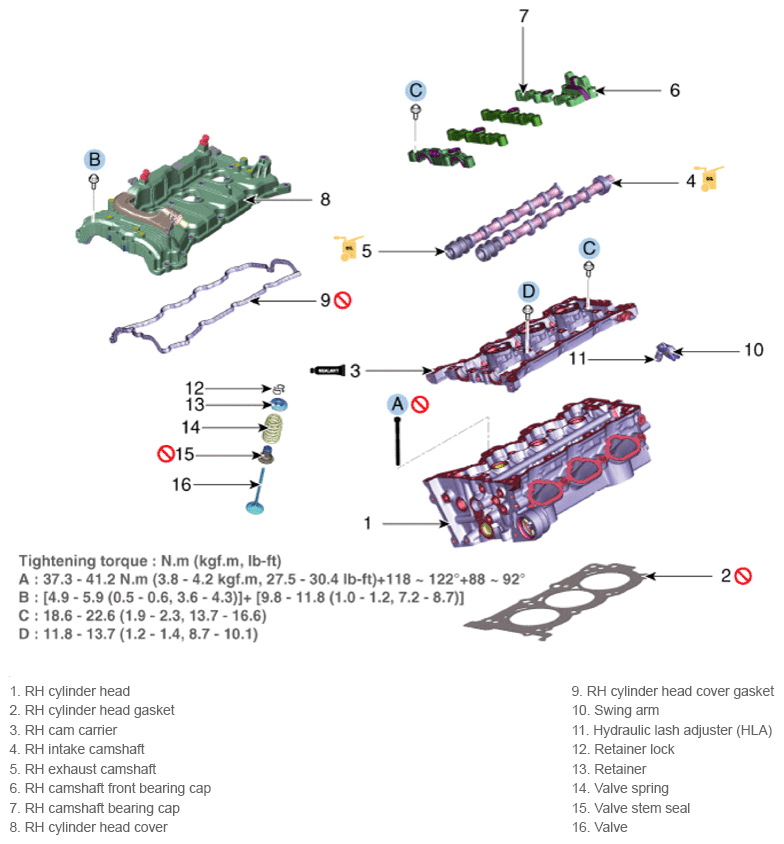

Fig 1: Cylinder Head Assembly Components Location With Torque Specifications (RH)

Courtesy of HYUNDAI MOTOR AMERICA
