LH CVVT & Camshaft
WARNING: This page is about a different variant/trim than selected.
- Remove the LH cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
- Remove the LH timing chain.
(Refer to Timing System - "TIMING CHAIN ")

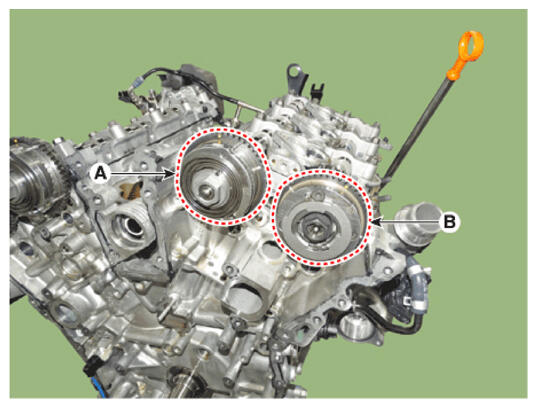

- Remove the LH intake CVVT assembly (A) and exhaust CVVT assembly (B).NOTE:
- Use care to keep foreign material out of the intake and exhaust OCV & center bolt.
- When removing the intake and exhaust OCV & Center bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.

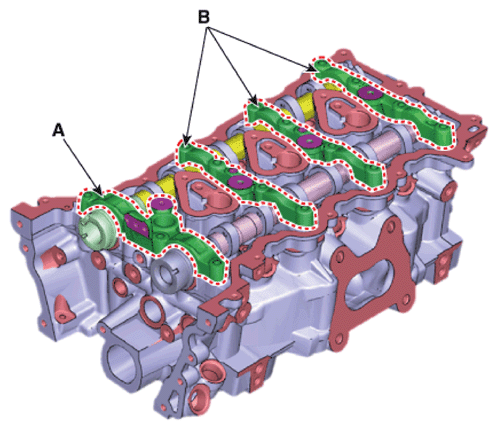

- Remove the LH camshaft front bearing cap (A) and camshaft bearing cap (B).

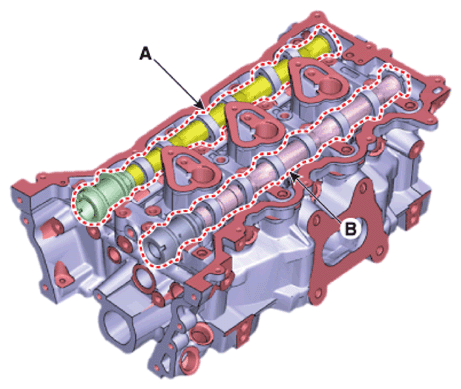

- Remove the LH intake camshaft (A) and LH exhaust camshaft (B).
