CVVT And Camshaft: Inspection: Camshaft

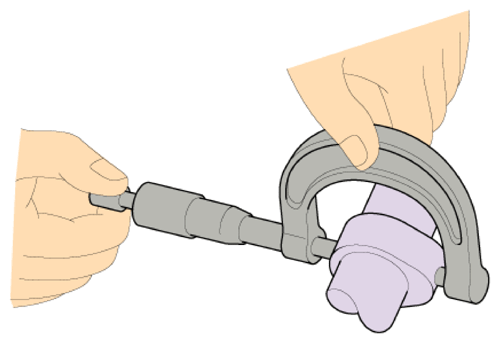

Using a micrometer, measure the cam lobe height.

Cam height

Intake: 38.5 mm (1.5157 in.)

Exhaust: 37.6 mm (1.4803 in.)

Courtesy of HYUNDAI MOTOR AMERICA

Inspect the cam lobe surface for abnormal wear and damage. Replace if necessary.

1. Clean the bearing caps and camshaft journals.
2. Place the camshafts on the cam carrier.

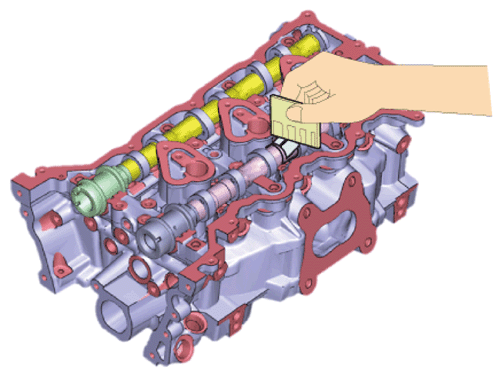

3. Lay a strip of plastic gauge across each of the camshaft journal.

   Courtesy of HYUNDAI MOTOR AMERICA

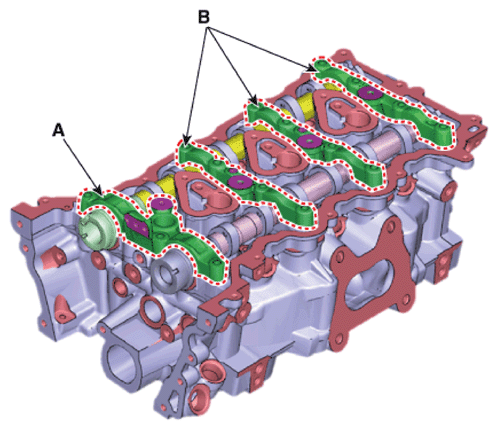

4. Install the LH camshaft front bearing cap (A) and camshaft bearing cap (B).

   Tightening torque:

   18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of LH camshaft front bearing cap and camshaft bearing cap.
   • Do not turn the camshaft.
   • Install the camshaft bearing caps in the sequence shown.

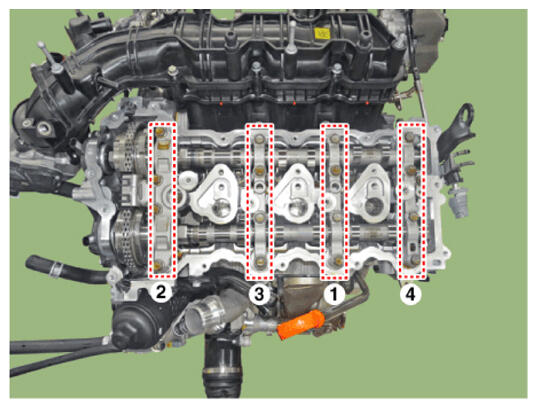

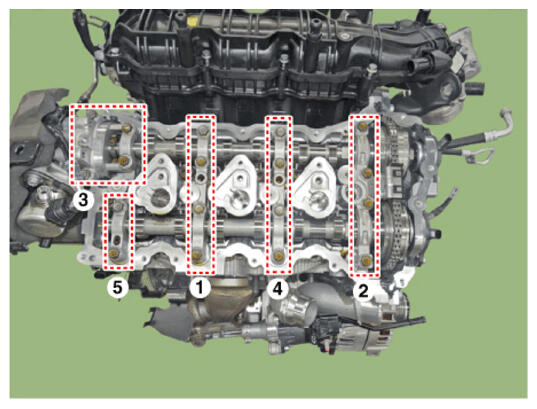

   Fig 1: Camshaft Bearing Caps Bolts Tightening Sequence

   Courtesy of HYUNDAI MOTOR AMERICA

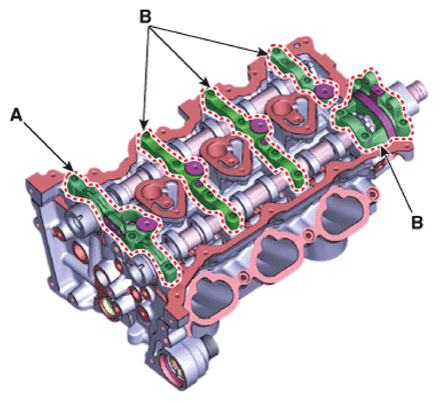

5. Install the RH camshaft front bearing cap (A) and camshaft bearing cap (B).

   Tightening torque:

   18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of RH camshaft front bearing cap and camshaft bearing cap.
   • Do not turn the camshaft.
   • Install the camshaft bearing caps in the sequence shown.
   Fig 2: Camshaft Bearing Caps Bolts Tightening Sequence

   Courtesy of HYUNDAI MOTOR AMERICA
6. Remove the camshaft bearing caps.
7. Measure the plastic gauge at its widest point.

   Bearing oil clearance

   [Standard value]

   Intake:

   No. 1: 0.034 - 0.062 mm (0.0013 - 0.0024 in.)

   No. 2, 3, 4: 0.033 - 0.061 mm (0.0013 - 0.0024 in.)

   Exhaust:

   No. 1: 0.034 - 0.062 mm (0.0013 - 0.0024 in.)

   No. 2, 3, 4: 0.033 - 0.061 mm (0.0013 - 0.0024 in.)

   Courtesy of HYUNDAI MOTOR AMERICA

   If the oil clearance is greater than maximum value, replace the camshaft. If necessary, replace the cam carrier.

8. Completely remove the plastic gauge.

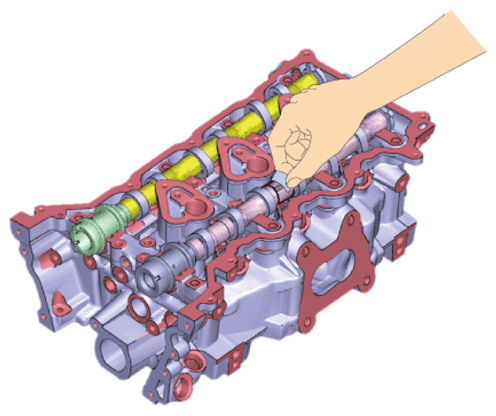

9. Remove the camshaft.

1. Install the camshaft on the cam carrier.
2. Install the LH camshaft front bearing cap (A) and camshaft bearing cap (B).

   Tightening torque:

   18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of LH camshaft front bearing cap and camshaft bearing cap.
   • Install the camshaft bearing caps in the sequence shown.
   Fig 3: Camshaft Bearing Caps Bolts Tightening Sequence

   Courtesy of HYUNDAI MOTOR AMERICA
3. Install the RH camshaft front bearing cap (A) and camshaft bearing cap (B).

   Tightening torque:

   18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to change the position and direction of RH camshaft front bearing cap and camshaft bearing cap.
   • Install the camshaft bearing caps in the sequence shown.
   Fig 4: Camshaft Bearing Caps Bolts Tightening Sequence

   Courtesy of HYUNDAI MOTOR AMERICA

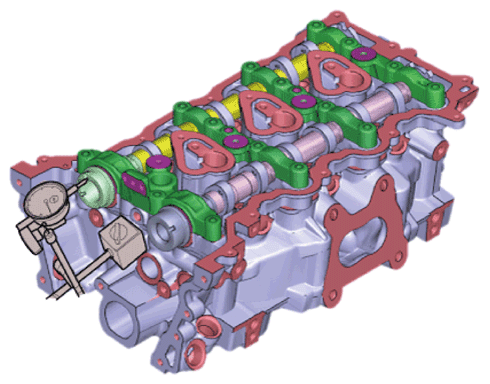

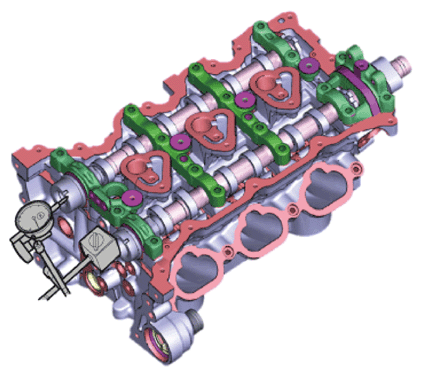

4. Using a dial gauge, measure the end play while moving the camshaft back and forth.

   Camshaft end play

   Intake: 0.04 - 0.18 mm (0.0016 - 0.0071 in.)

   Exhaust: 0.04 - 0.18 mm (0.0016 - 0.0071 in.)

   [LH]

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Courtesy of HYUNDAI MOTOR AMERICA

   If the end play is greater than maximum value, replace the camshaft. If necessary, replace the cam carrier.

5. Remove the camshaft.
