[CVVT System Mode]
WARNING: This page is about a different variant/trim than selected.

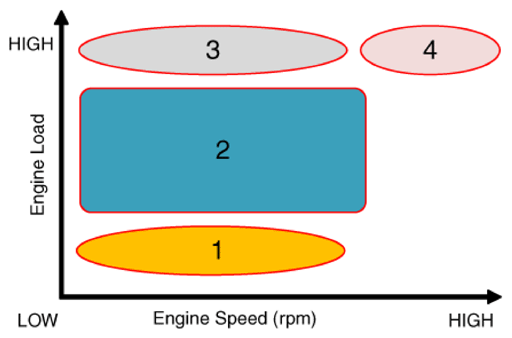

| (1) Low Speed/Low Load | (2) Part Load |
| (3) Low Speed/High Load | (4) High Speed/Hi |
| Driving Condition | Exhaust Valve | Intake Valve | ||
|---|---|---|---|---|
| Valve Timing | Effect | Valve Timing | Effect | |

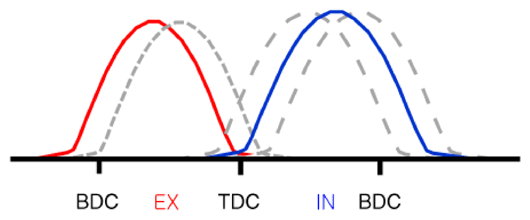

| (1) Low Speed/Low Load | Completely Advance | * Valve Under-lap * Improvement of combustion stability |
Completely Retard | * Valve Under-lap * Improvement of combustion stability |

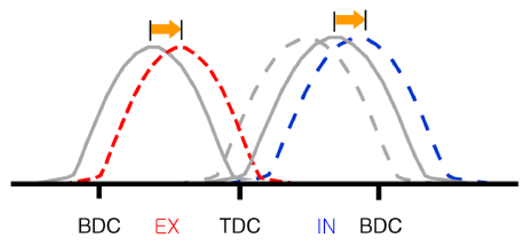

| (2) Part Load | Retard | * Increase of expansion work * Reduction of pumping loss * Reduction of HC |
Retard | * Reduction of pumping loss |

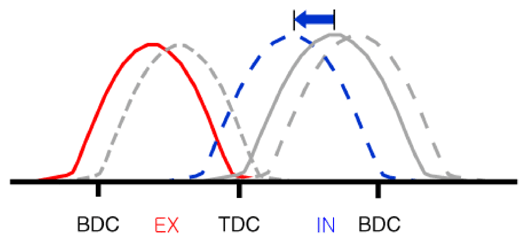

| (3) Low Speed/High Load | Retard | * Increase of expansion work | Advance | * Prevention of intake back flow (Improvement of volumetric efficiency) |

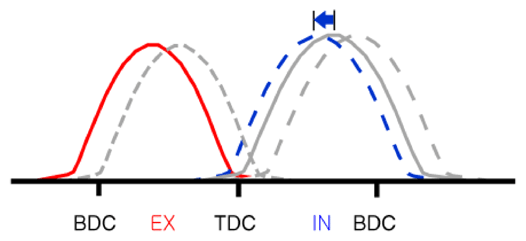

| (4) High Speed/High Load | Advance | * Reduction of pumping loss | Retard | * Improvement of volumetric efficiency |
