Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

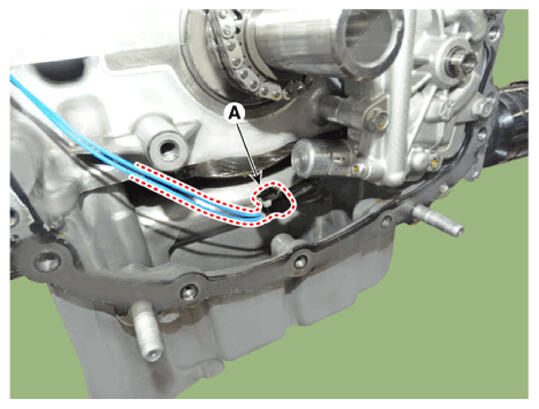

Disconnect the oil pump solenoid connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

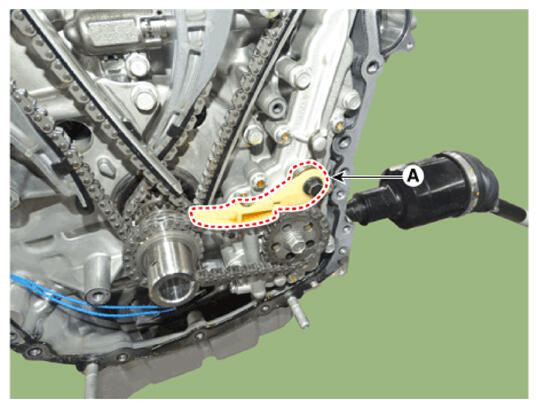

Remove the oil pump chain tensioner (A).
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

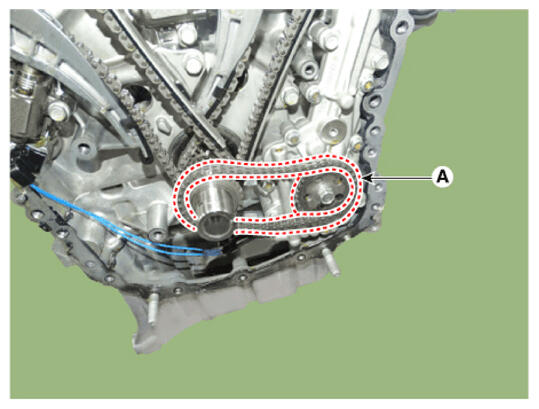

Remove the oil pump chain (A) with the oil pump sprocket.
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

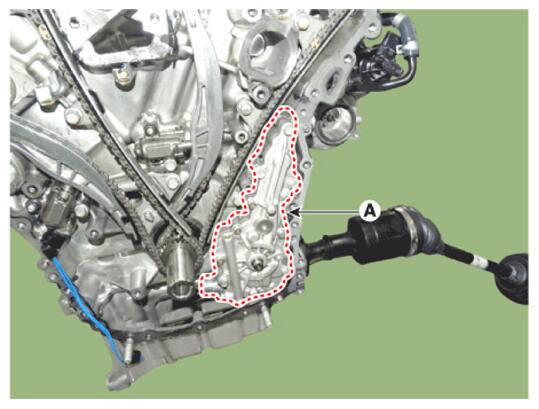

Remove the oil pump (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

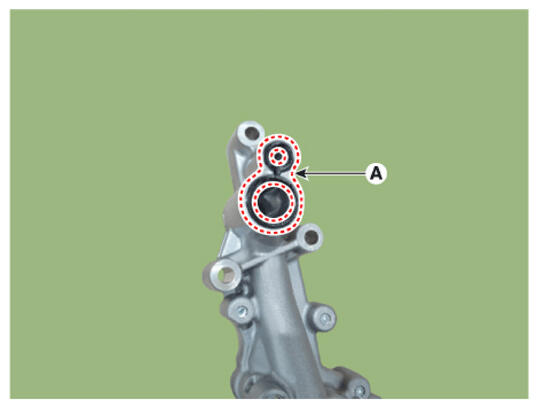

- When installing the oil pump, check the existence of O-ring (A) on the mating surface.
- Always use new oil pump O-ring (A).

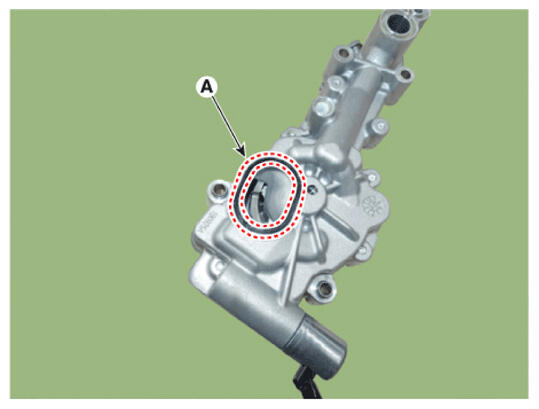

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Fill the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
Start engine and check for leaks.
Recheck engine oil level.
