Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal from the trunk room.
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")

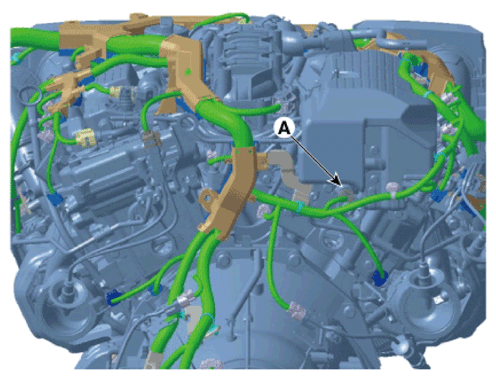

Disconnect the oil pressure & temperature sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

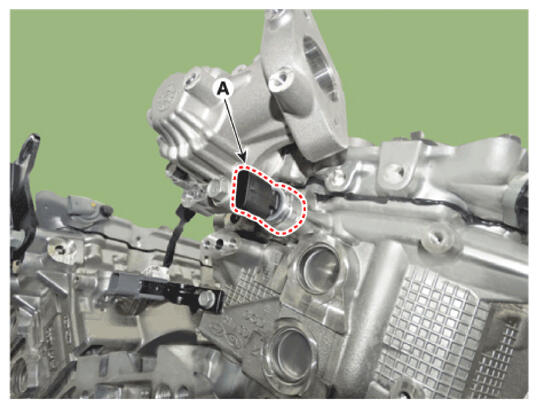

Remove the oil pressure & temperature sensor (A).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:

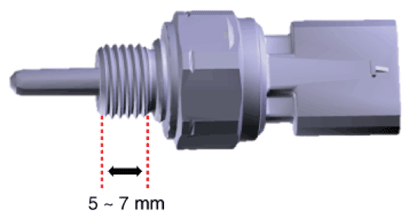

- When installing the oil pressure & temperature sensor, apply SEAL LOCK on the threads.
  Specification : TB2403

  Thickness : 0.2 - 0.4 mm (0.00787 - 0.01575 in.)

Courtesy of HYUNDAI MOTOR AMERICA
