Upper oil pan

1. Before assembling the upper oil pan, remove the hardening sealant, foreign material, oil, dust, moisture remaining on the sealing surface and on the mating part.
2. Assemble the upper oil pan within 5 minutes after applying sealant.

   Bead width  : 2.5 - 3.5 mm (0.09843 - 0.13780 in.)

   Sealant  : MS721-40 AA or AAO

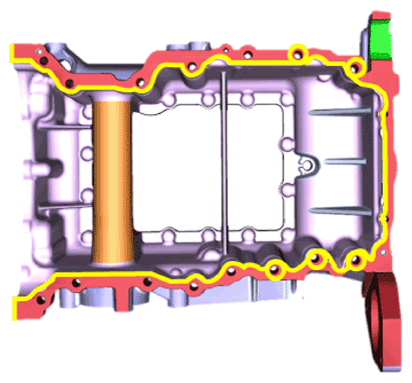

   [2WD]

   Courtesy of HYUNDAI MOTOR AMERICA

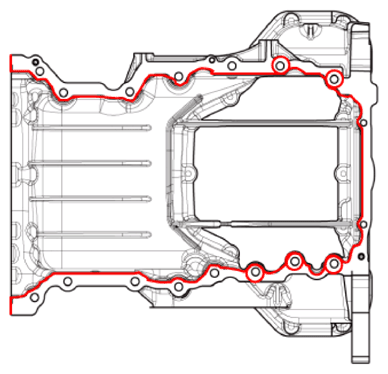

   [AWD]

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When applying sealant, sealant must not be protruded into the inside of upper oil pan.

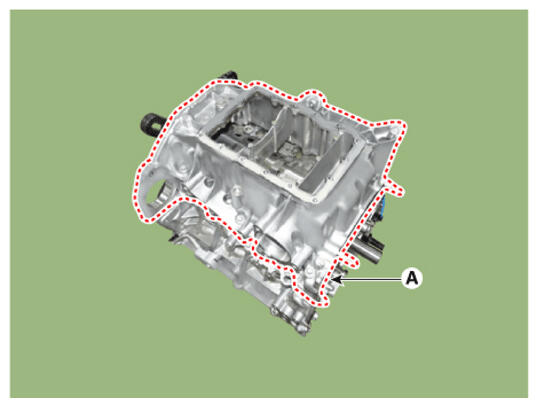

   • When applying sealant on the lower crankcase, the sealant application line should be same with that of the upper oil pan.

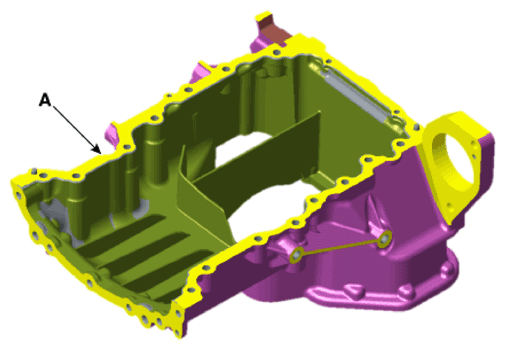

3. Install the upper oil pan (A) and then uniformly tighten the oil pan bolts in several passes.

   Tightening torque:

   Except washer integrated bolt: 19.6 - 21.6 N.m (2.0 - 2.2 kgf.m, 14.5 - 15.9 lb-ft)

   Washer integrated bolt: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   [2WD]

   Courtesy of HYUNDAI MOTOR AMERICA

   [AWD]

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • After assembling the upper oil pan, fill engine oil after at least 30 minutes have elapsed.

(Refer to Lubrication System - "ENGINE OIL ")
