Lower oil pan

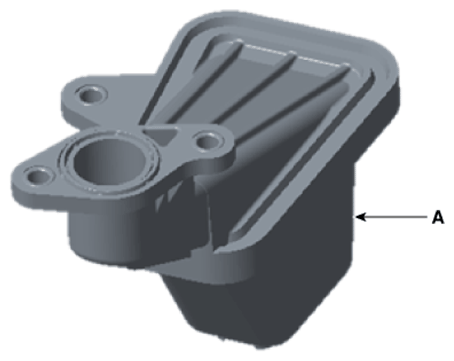

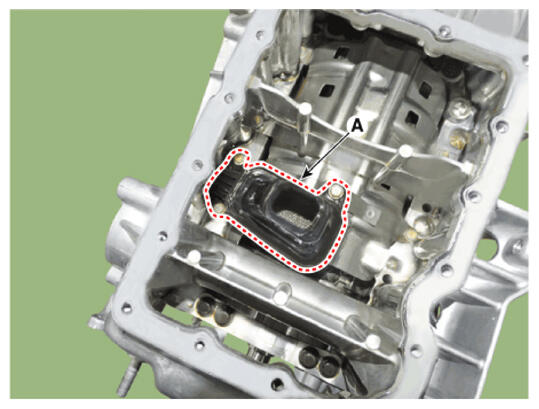

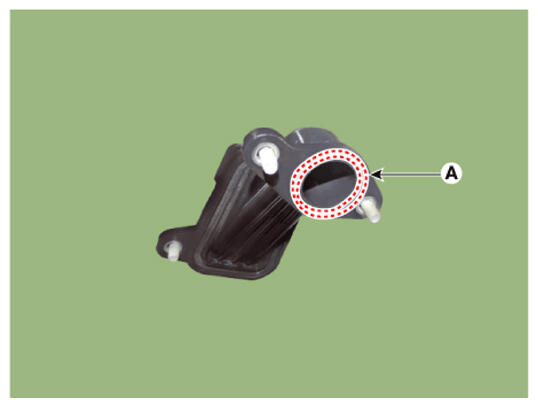

Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

[2WD]

Courtesy of HYUNDAI MOTOR AMERICA

[AWD]

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

1. Before assembling the lower oil pan, remove the hardening sealant, foreign material, oil, dust, moisture remaining on the sealing surface and on the mating part.
2. Assemble the lower oil pan within 5 minutes after applying sealant.

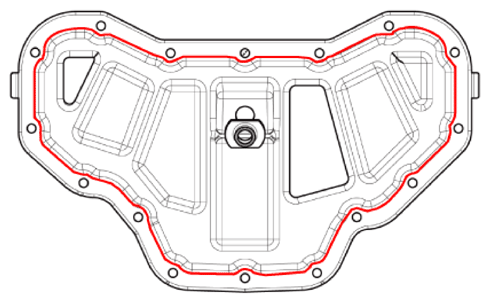

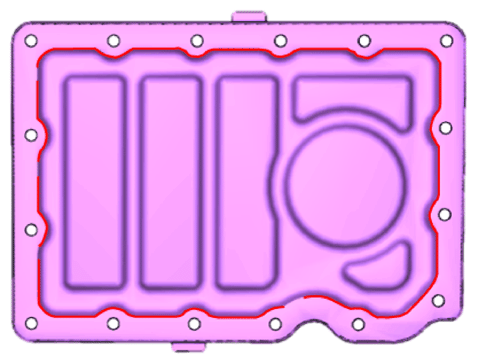

   Bead width  : 2.5 - 3.5 mm (0.09843 - 0.13780 in.)

   Sealant  : MS721-40 AA or AAO

   [2WD]

   Courtesy of HYUNDAI MOTOR AMERICA

   [AWD]

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When applying sealant, sealant must not be protruded into the inside of lower oil pan.
   • When applying sealant on the upper oil pan, the sealant application line should be same with that of the lower oil pan.

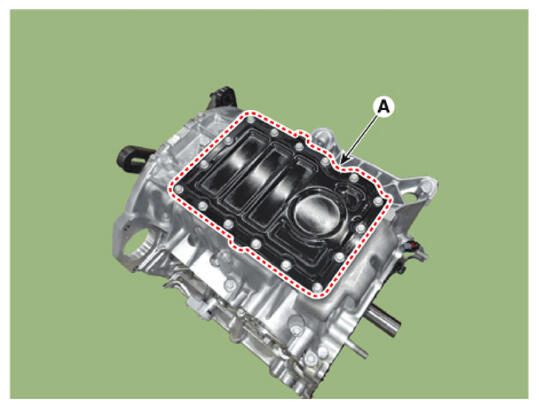

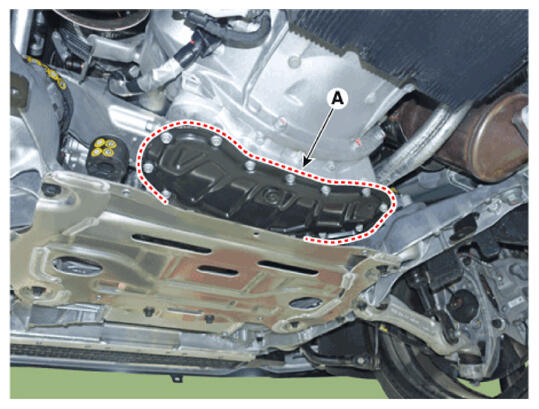

3. Install the lower oil pan (A) and then uniformly tighten the oil pan bolts in several passes.

   Tightening torque:

   11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

   [2WD]

   Courtesy of HYUNDAI MOTOR AMERICA

   [AWD]

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • After assembling the lower oil pan, fill engine oil after at least 30 minutes have elapsed.

(Refer to Lubrication System - "ENGINE OIL ")

(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
