Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
- Disconnect the oil level sensor connector.

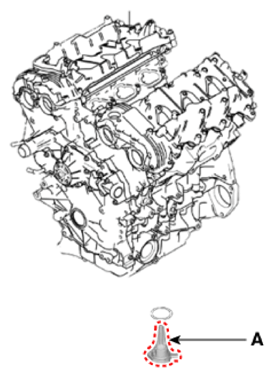

- Remove the oil level sensor (A).
Tightening torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0 lb-ft)
NOTE:- Always use new gasket.
- Install in the reverse order of removal.
