Removal And Installation
WARNING: This page is about a different variant/trim than selected.

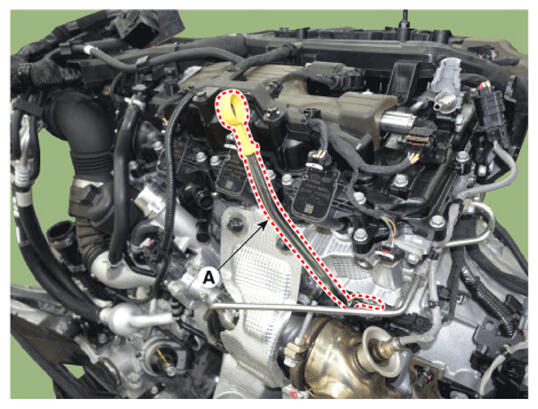

- Remove the oil level gauge and guide (A).
Tightening torque:
42.2 - 46.1 N.m (4.3 - 4.7 kgf.m, 31.1 - 34.0 lb.ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
