Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

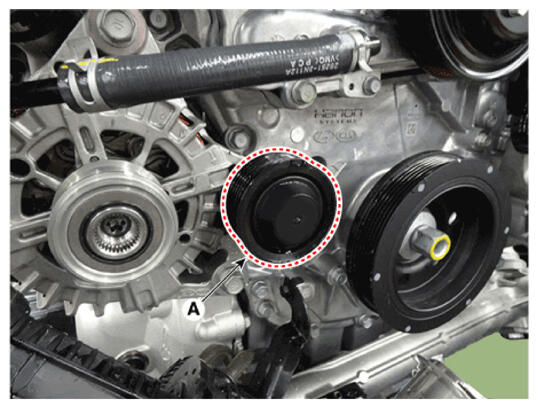

- Remove the idler cap and then remove the drive belt idler (A).
Tightening torque:
53.9 - 55.9 N.m (5.5 - 5.7 kgf.m, 39.8 - 41.2 lb-ft)
- Install in the reverse order of removal.
