Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

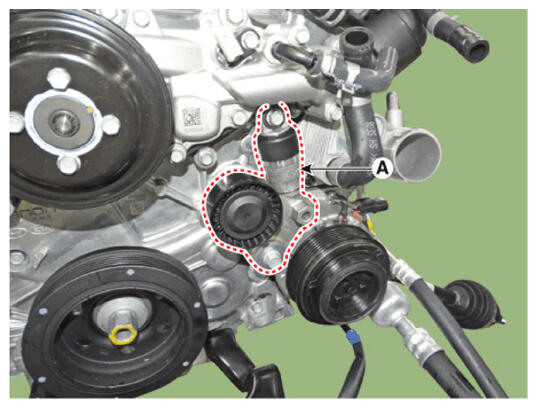

- Remove the drive belt tensioner (A).
Tightening torque:
Drive belt tensioner mounting bolt (M8):
19.6 - 21.6 N.m (2.0 - 2.2 kgf.m, 14.5 - 15.9 lb-ft)
Drive belt tensioner mounting bolt (M10):
53.0 - 56.9 N.m (5.4 - 5.8 kgf.m, 39.1 - 42.0 lb-ft)
- Install in the reverse order of removal.
