Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine room front under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  2. Remove the drive belt.

    (Refer to Drive Belt System - "DRIVE BELT ")

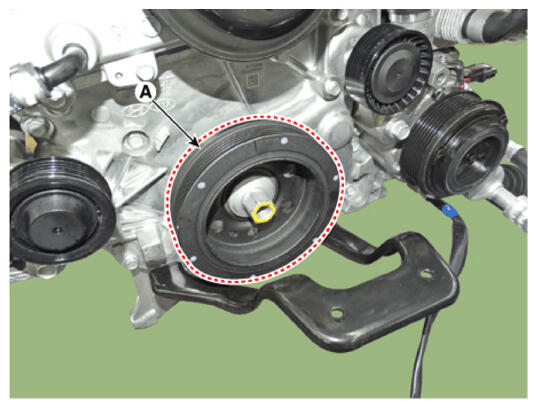

  3. Remove the crankshaft damper pulley (A).

    Tightening torque:

    117.7 - 127.5 N.m (12.0 - 13.0 kgf.m, 86.8 - 94.0 lb.ft) + (88 - 92°)

    G16847702Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

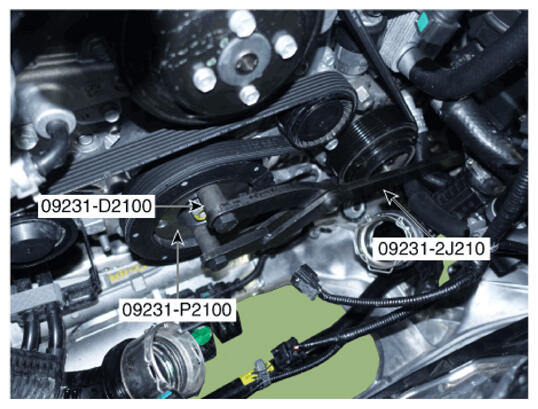

    • After installing the SST (09231-2J210, 09231-P2100, 09231-D2100) on the crankshaft damper pulley, remove the crankshaft damper pulley bolt.
      • Assemble the SST (09231-D2100) between the SST (09231-2J210) and SST (09231-P2100).
        G16847703Courtesy of HYUNDAI MOTOR AMERICA

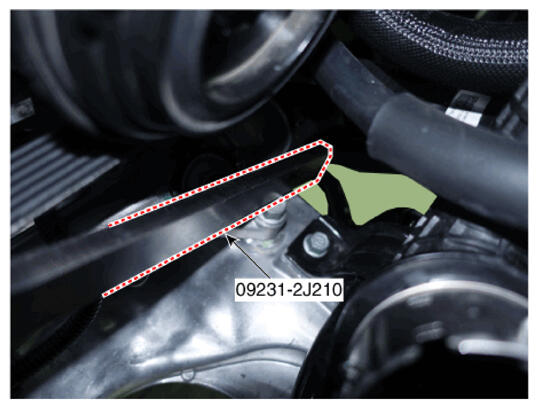

      • Fix the SST (09231-2J210) to the vehicle frame or the front crossmember.
    G16847704Courtesy of HYUNDAI MOTOR AMERICA
    G16847705Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
