Automatic Transmission System: Removal

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the engine and transmission assembly. (Refer to Engine Mechanical System - "ENGINE AND TRANSMISSION ASSEMBLY ")

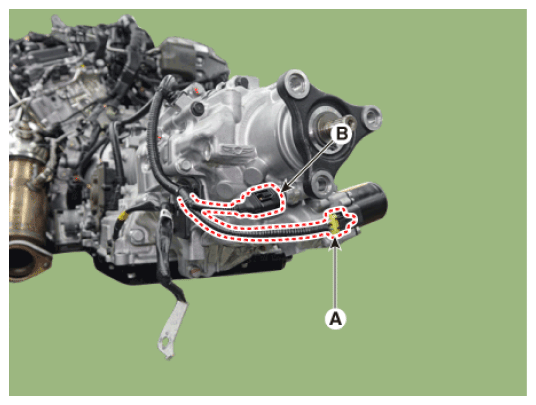

Disconnect the hydraulic motor connector (A) and pressure sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

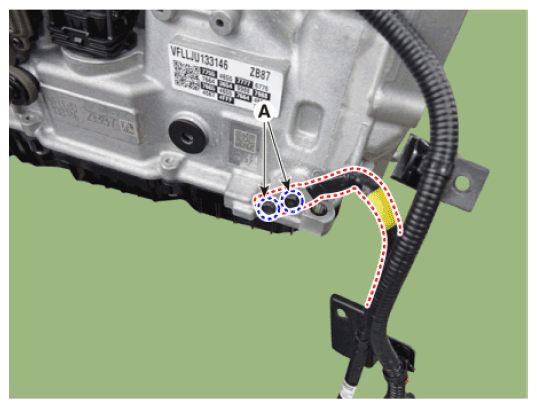

Remove the wiring after loosening the mounting bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

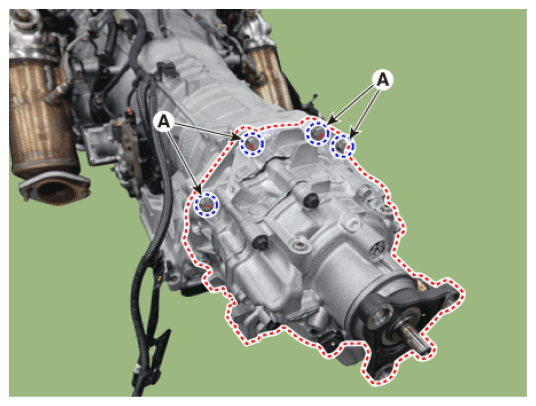

Loosen the transfer case upper bolts (A).
Tightening torque

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

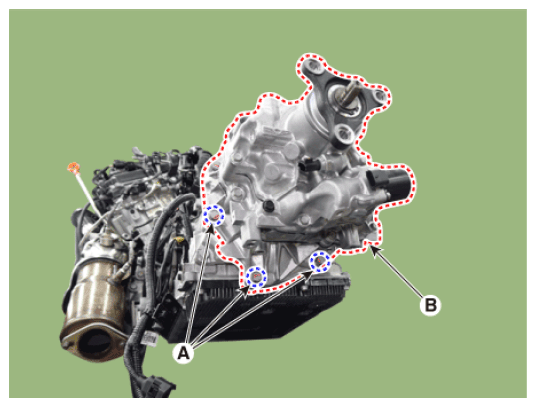

Remove the transfer case (B) after loosening the lower bolts (A).
Tightening torque:

29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

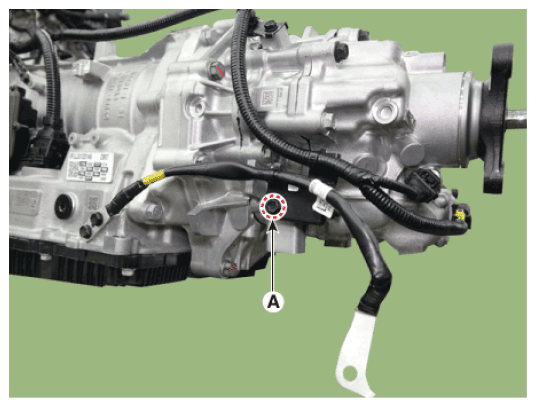

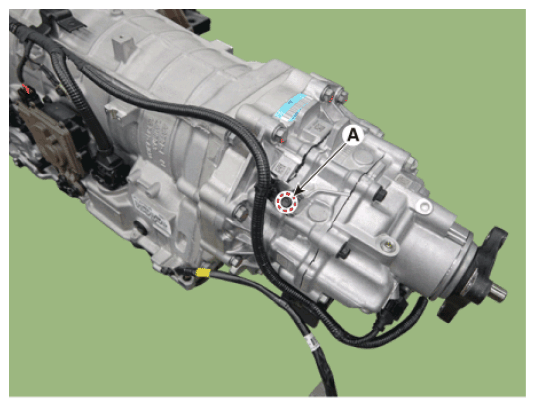

Loosen the ground mounting bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

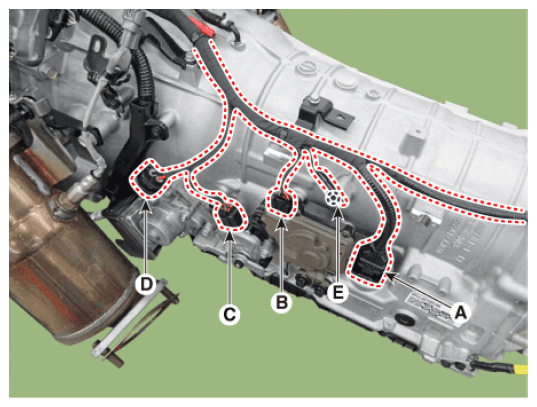

Disconnect the connectors in the illustration shown below.
1. E-Module connector
2. Parking release actuator connector
3. Parking switch connector
4. Electronic oil pump connector
Courtesy of HYUNDAI MOTOR AMERICA

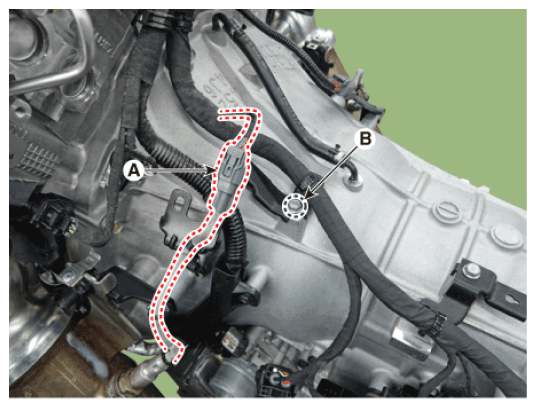

Disconnect the heated oxygen sensor connector (A).
Remove the wiring after loosening the mounting bolts (B).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

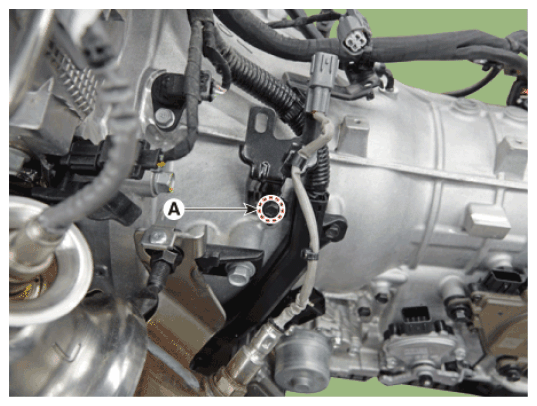

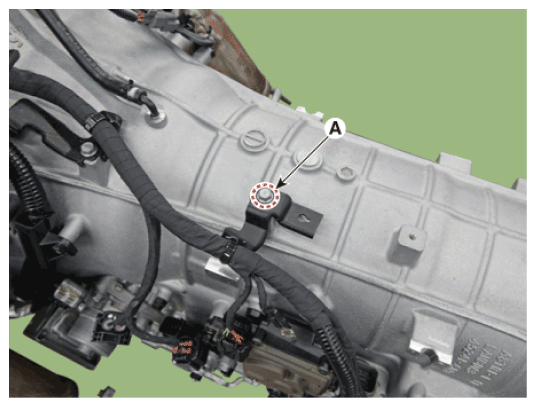

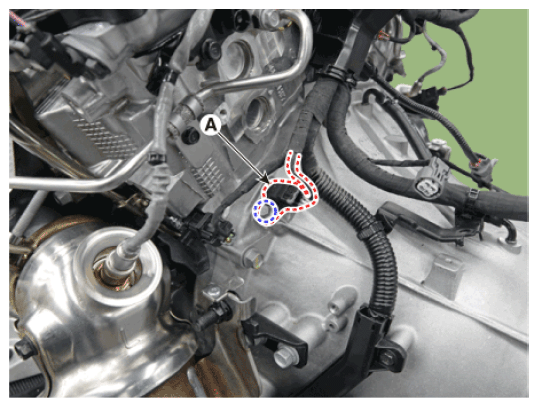

Remove the wiring after loosening the mounting bolt (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolts and then removing the crankshaft position sensor (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the [LH] warmer catalytic converter (WCC).

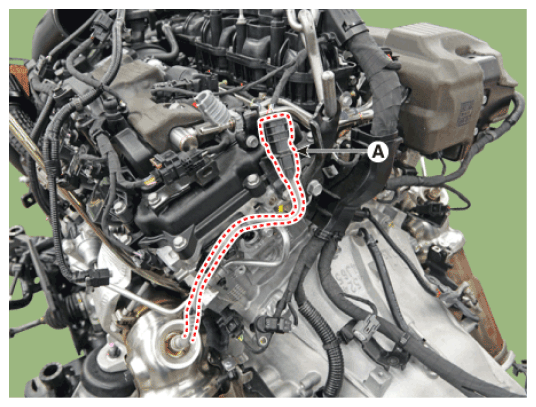

Disconnect the heated oxygen sensor connector (A).

G16840940

Courtesy of HYUNDAI MOTOR AMERICA

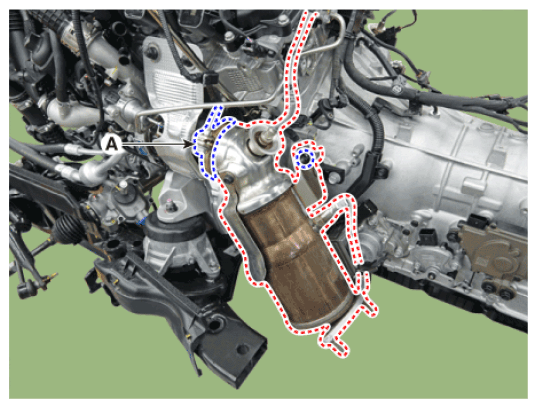

Remove the clamp (A).

Loosen the nuts and then removing the warmer catalytic converter (WCC) (B).

G16840941

Courtesy of HYUNDAI MOTOR AMERICA

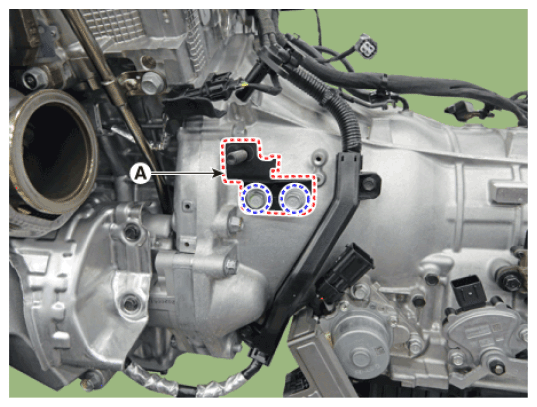

Remove the warmer catalytic converter (WCC) bracket (A).

G16840942

Courtesy of HYUNDAI MOTOR AMERICA

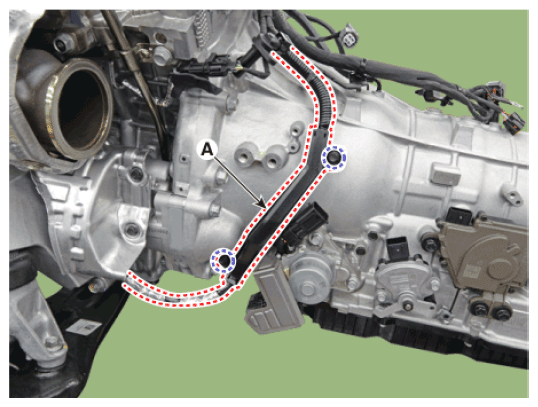

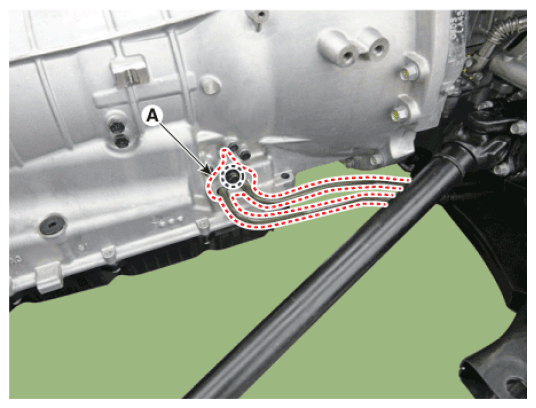

Remove the wiring after loosening the mounting bolts (A).
Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

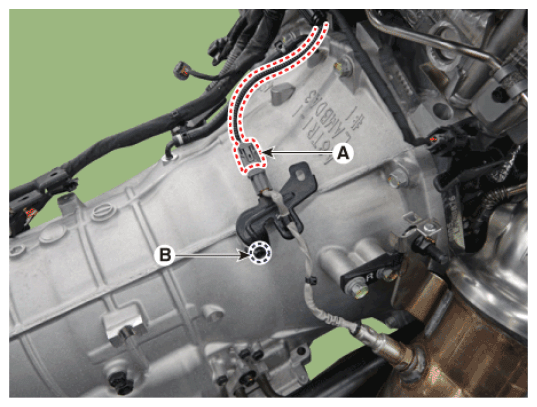

Disconnect the heated oxygen sensor connector (A).
Remove the wiring after loosening the mounting bolt (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Remove the [RH] warmer catalytic converter (WCC).

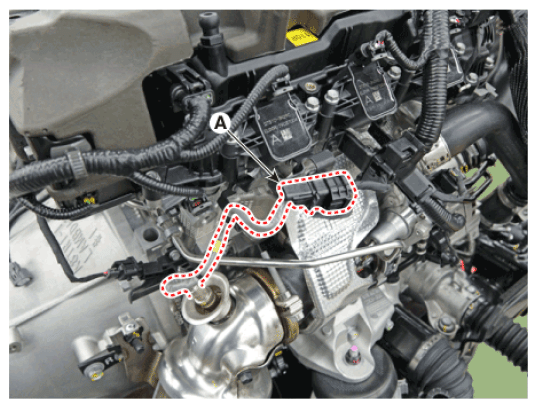

Disconnect the heated oxygen sensor connector (A).

G16840945

Courtesy of HYUNDAI MOTOR AMERICA

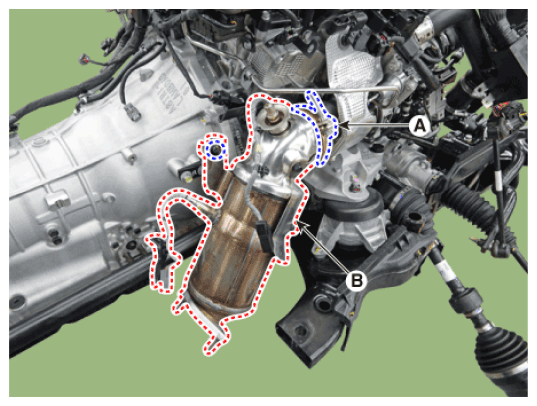

Remove the clamp (A).

Loosen the nuts and then removing the warmer catalytic converter (WCC) (B).

G16840946

Courtesy of HYUNDAI MOTOR AMERICA

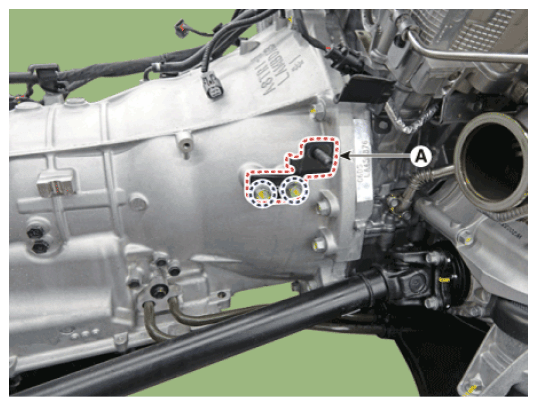

Remove the warmer catalytic converter (WCC) bracket (A).

G16840947

Courtesy of HYUNDAI MOTOR AMERICA

Disconnect the oil cooler tube (A).

Courtesy of HYUNDAI MOTOR AMERICA

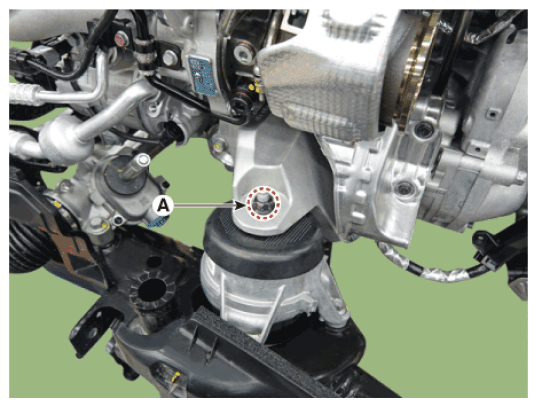

Loosen the engine bracket mounting nut (A).
Tightening torque :

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

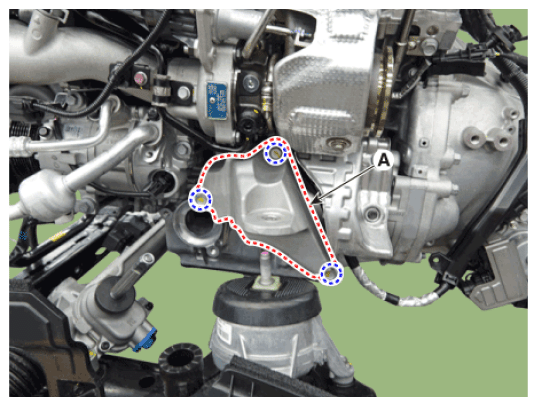

Remove the LH engine mounting support bracket (A).
Tightening torque :

49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

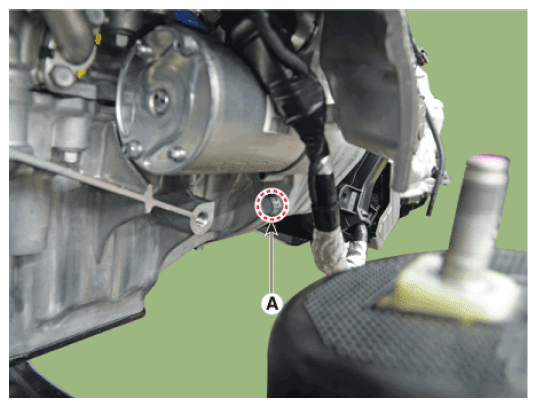

Loosen the starter mounting bolt (A).
Tightening torque :

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

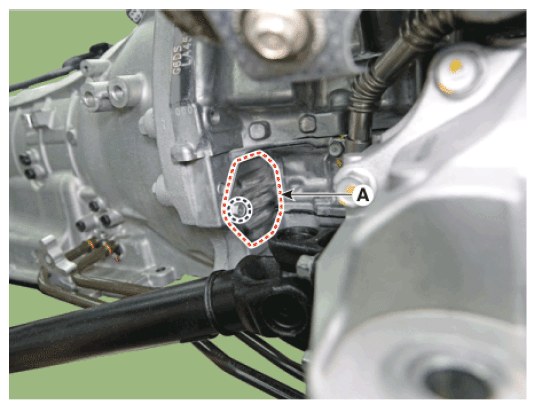

Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

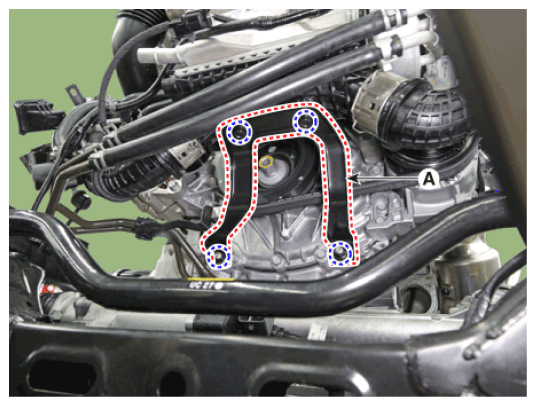

Remove the water cooled Intercooler bracket (A) after loosening the mounting bolt and nuts.
Tightening torque:

Bolt: 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 Ib-ft)

Nut: 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

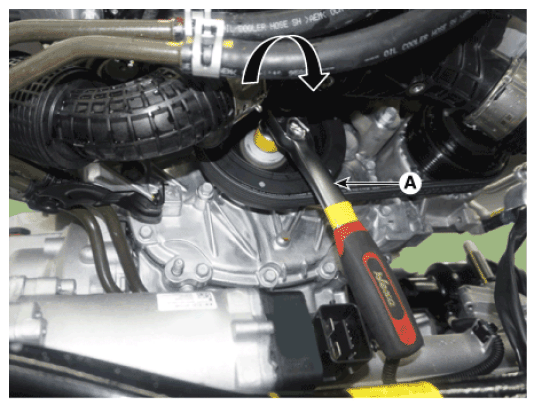

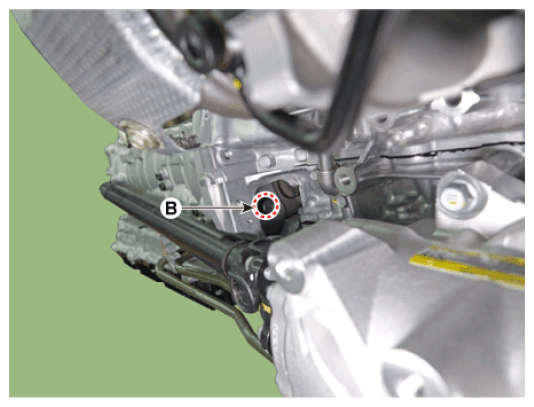

Rotate the crank shaft and loosen the torque converter mounting bolts (B) by using tool (A).
Tightening torque :

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing, apply the ATF to the bolts thread before tightening the bolts.
- When installing, lightly tighten the bolts (6-ea) and then tighten the bolts to the specified torque.

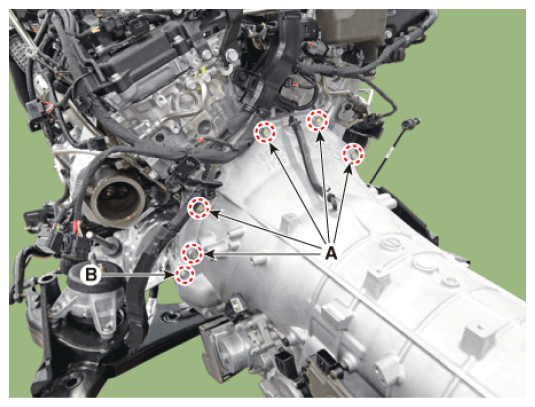

Loosen the starter mounting bolts (A) and the transmission mounting bolts (B).
Tightening torque:
1. 78.5 - 98.1 N.m (4.3 - 5.5 kgf.m, 57.9 - 72.3 lb-ft)
2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

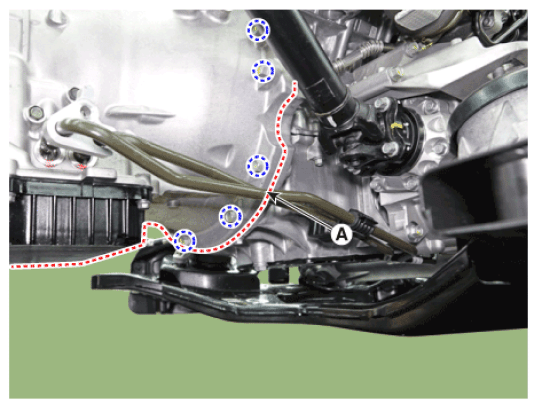

Remove the transmission (A) after loosening the auto transmission mounting bolts.
Tightening torque:

39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
