Components And Components Location

WARNING: This page is about a different variant/trim than selected.

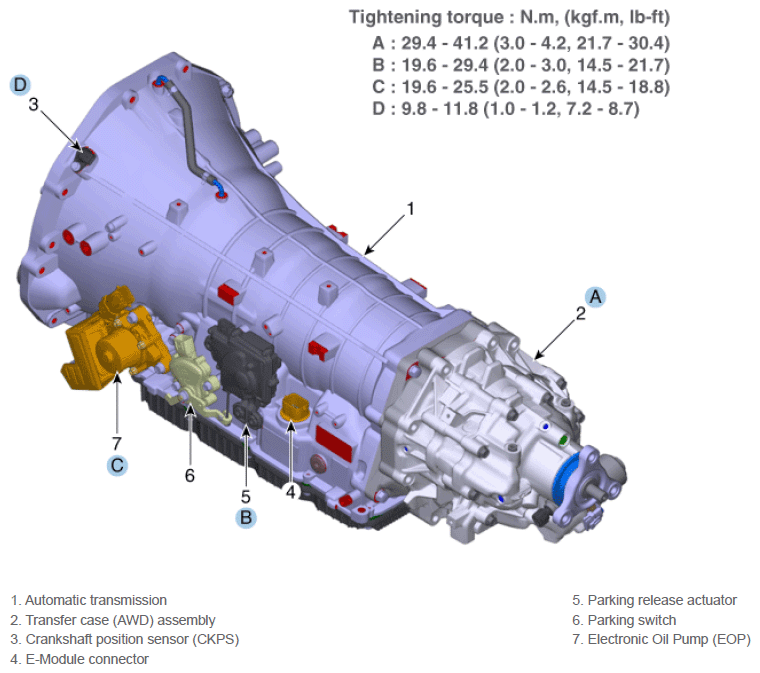

Fig 1: Automatic Transmission System Components Location With Torque Specifications
G16840928Courtesy of HYUNDAI MOTOR AMERICA
